Rear SUSPENTION -- Convertible
›
Removal And Installation
›
Radius Rod
›
Exploded View
Exploded View

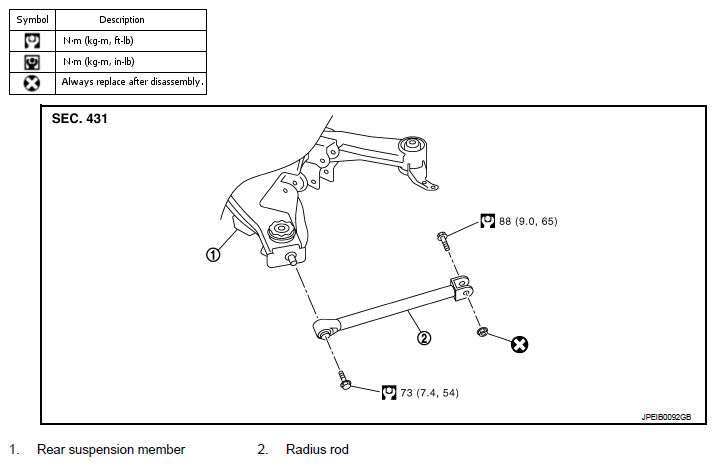

Fig 1: Radius Rod And Rear Suspension Member With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
