Rear SUSPENTION -- Convertible
›
Removal And Installation
›
Rear Shock Absorber
›
Exploded View
Exploded View

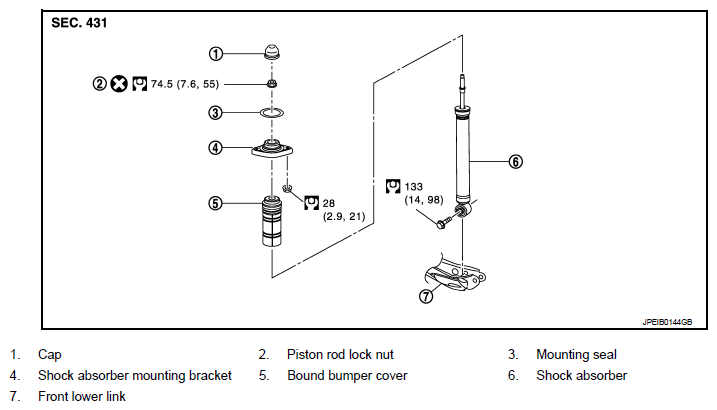

Fig 1: Exploded View Of Rear Shock Absorber
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
