Home
›
Infiniti
›
2009
›
G37 Base, 2D Convertible
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission -- Convertible
›
Removal And Installation
›
A/T Shift Selector
›
Exploded View
Exploded View

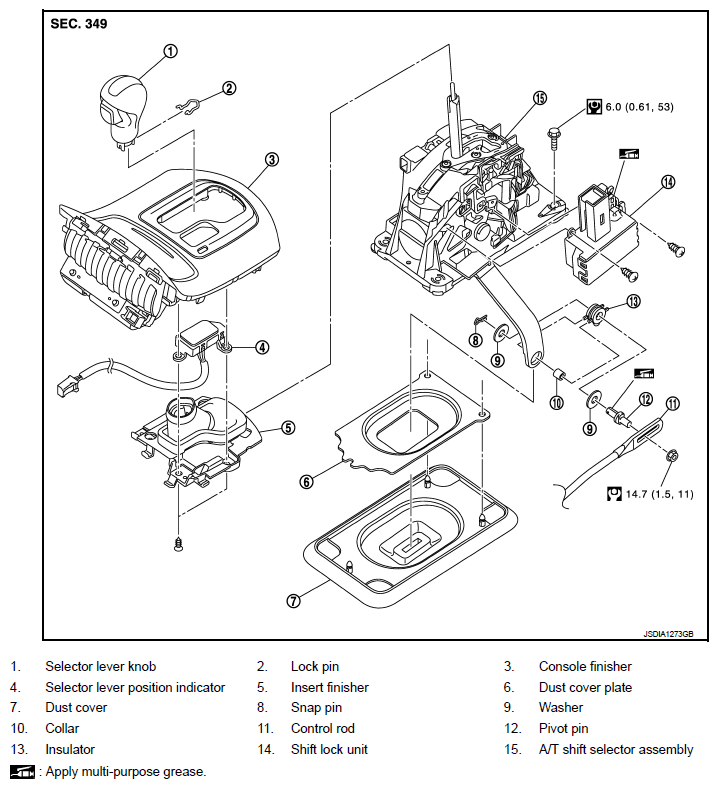

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
