Automatic Transmission -- Convertible
›
Removal And Installation
›
Oil Pan
›
Exploded View
Exploded View

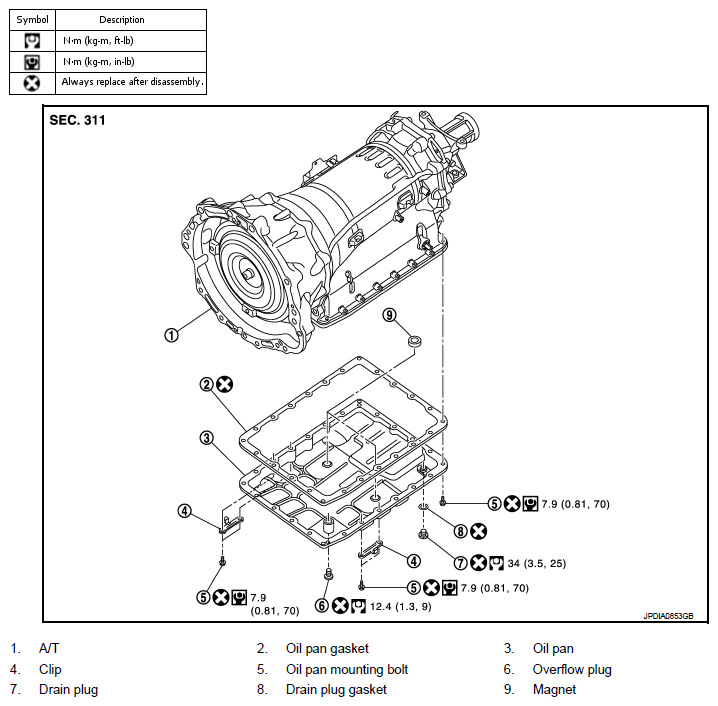

Fig 1: Exploded View Of Oil Pan With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
