Engine Control System - Introduction - G37 Coupe
›
Function Diagnosis
›
Cooling Fan Control
›
System Diagram
System Diagram

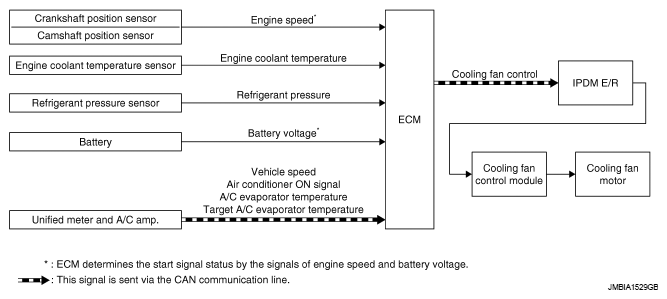

Fig 1: Cooling Fan Control - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
