Exploded View

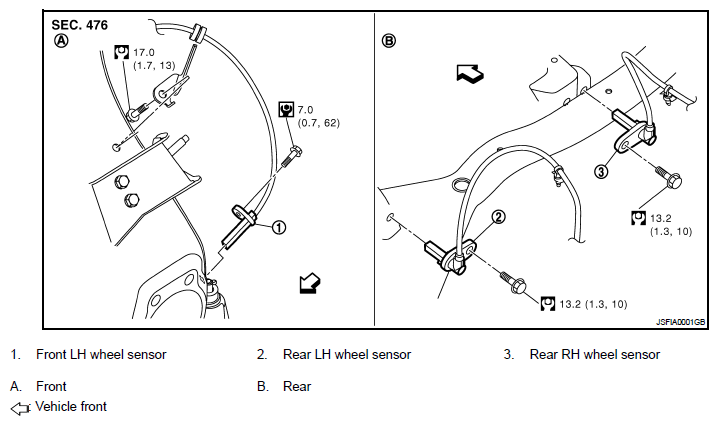

Fig 1: Identifying Wheel Sensor Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION "COMPONENTS " for symbol marks in the figure.

NOTE: The above figure (front side) shows left side. Right side is the mirror image.
