Exploded View

WARNING: This page is about a different variant/trim than selected.

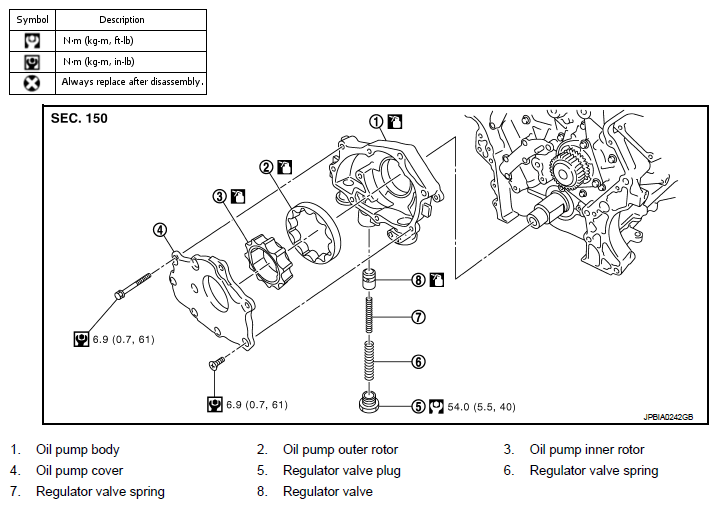

Fig 1: Exploded View Of Oil Pump With Torque Specifications

G05972401

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
