Front Propeller Shaft Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

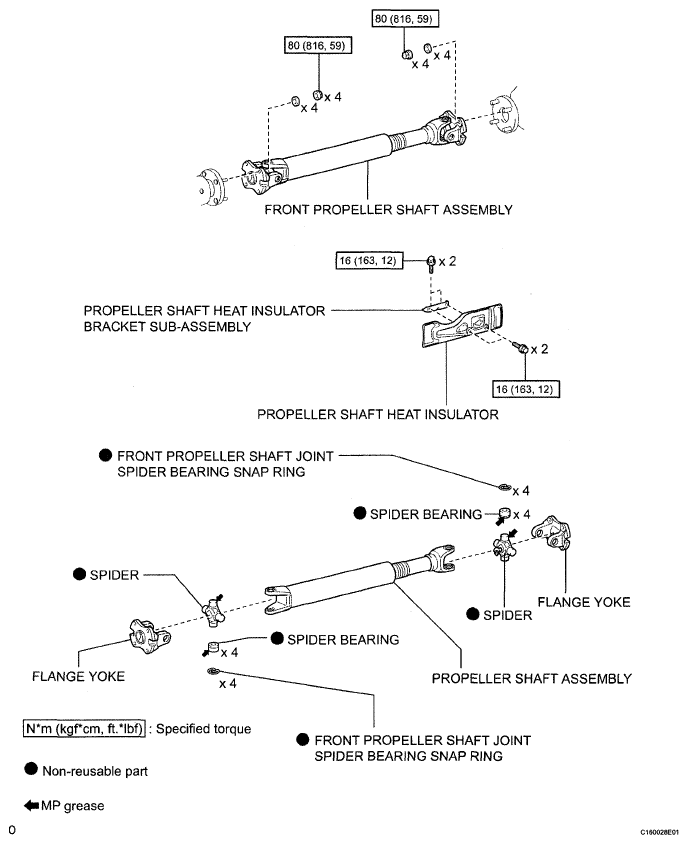

Fig 1: Identifying Front Propeller Shaft Assembly Replacement Components With Torque Specifications
G05159195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
