Wiper Switch: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
1. Attach the claw to install the wiper switch.
2. Connect the 2 connectors.

  Fig 1: Locating Wiper Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER STEERING COLUMN COVER
1. Attach the 4 clips to install the upper steering column cover onto the instrument panel cluster finish panel.
2. Attach the claw to install the upper steering column cover.

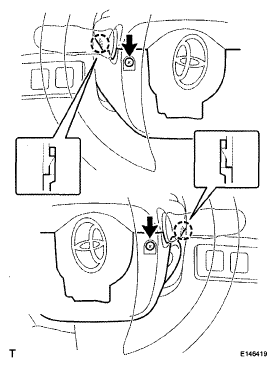

  Fig 2: Identifying Clips On Upper Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER STEERING COLUMN COVER
1. Attach the 2 claws to install the lower steering column cover.
  NOTE: Do not damage the tilt and telescopic switch.
2. Using a screwdriver, while turning the steering wheel to the right and left, install the 2 screws and lower steering column cover.

  Fig 3: Locating Claws On Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
