System Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

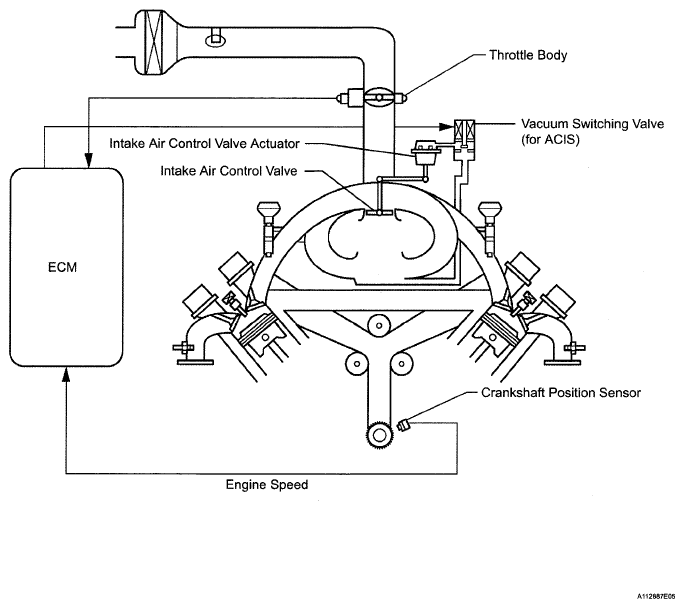

Fig 1: Identifying Intake System Diagram (1 Of 2)
G05152556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Intake System Diagram (2 Of 2)
G05152557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
