Removal and Installation: Components

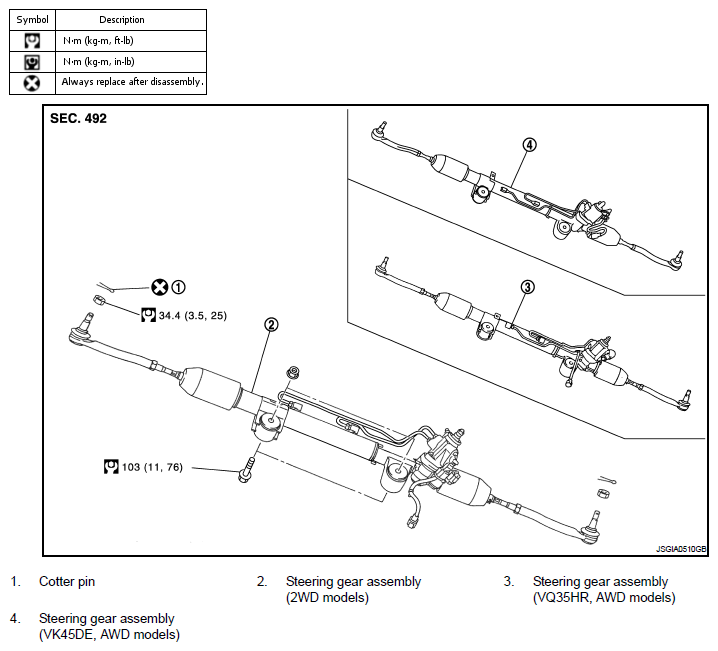

Fig 1: Power Steering Gear And Linkage Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT ", for the symbols in the figure.

CAUTION: Spiral cable may be cut if steering wheel turns while separating steering column assembly and steering gear assembly. Be sure to secure steering wheel using string to avoid turning.
