Parking Brake Control: Component

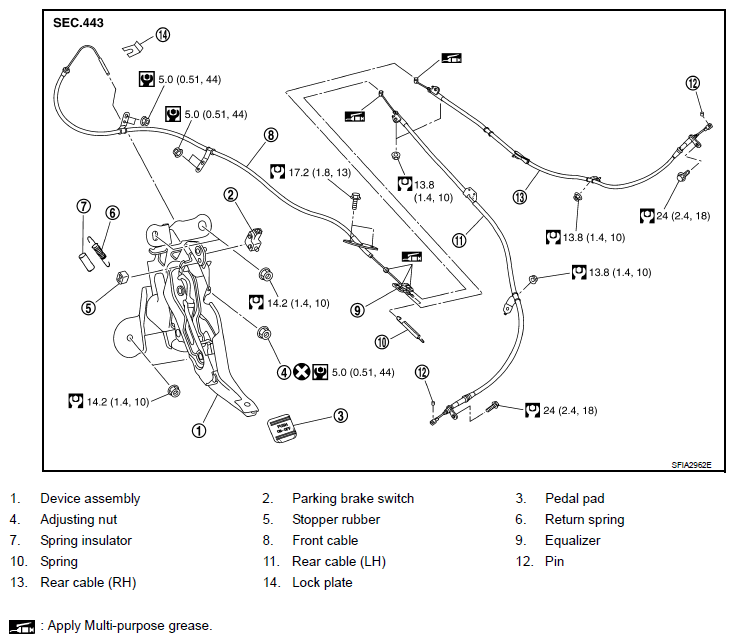

Fig 1: Parking Brake Control Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT " and the followings for the symbols in the figure.
