SECONDARY AIR INJECTION CONTROL SYSTEM DIAGRAM

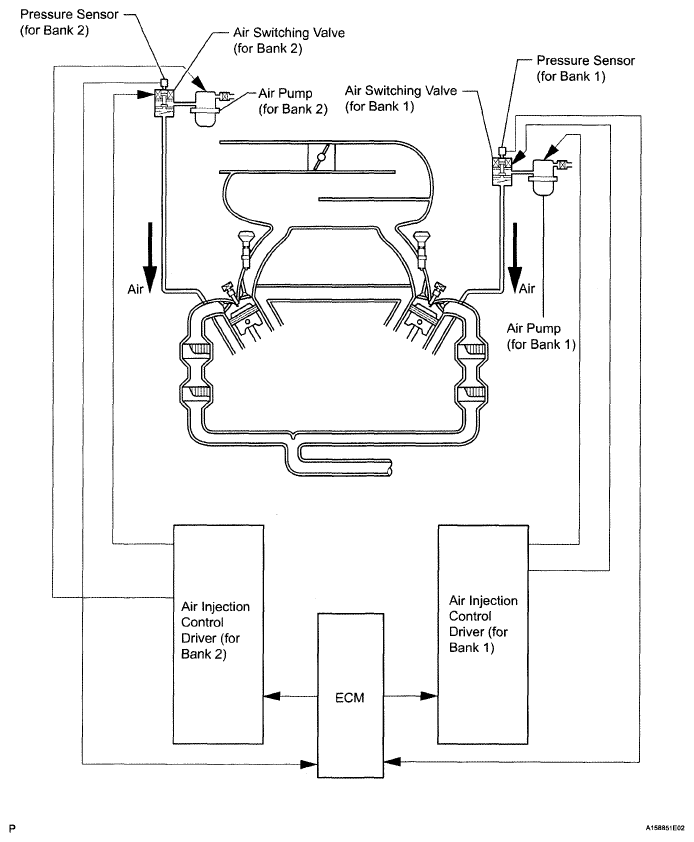

Fig 1: Emission Control - Secondary Air Injection Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SECONDARY AIR INJECTION SYSTEM WIRING DIAGRAM

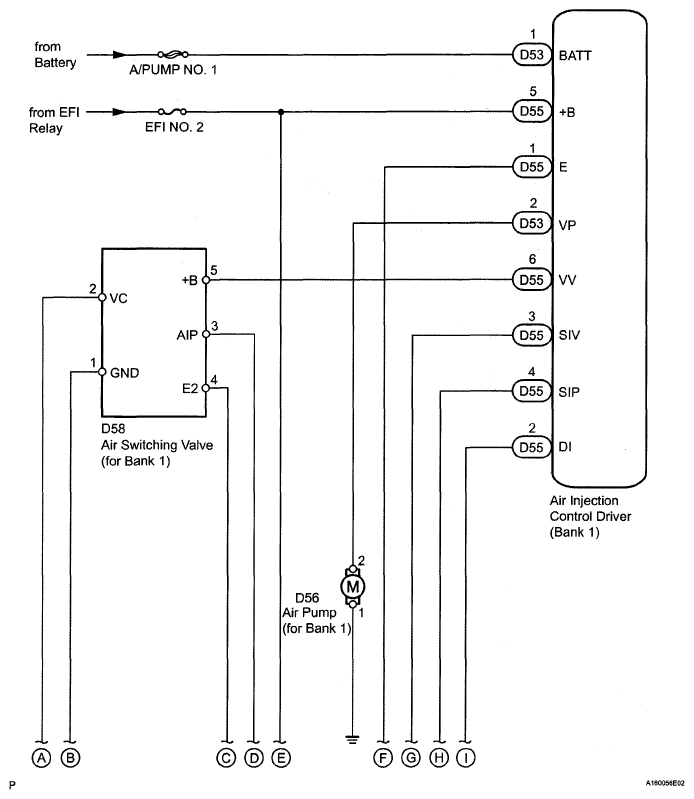

Fig 2: Emission Control - Secondary Air Injection System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

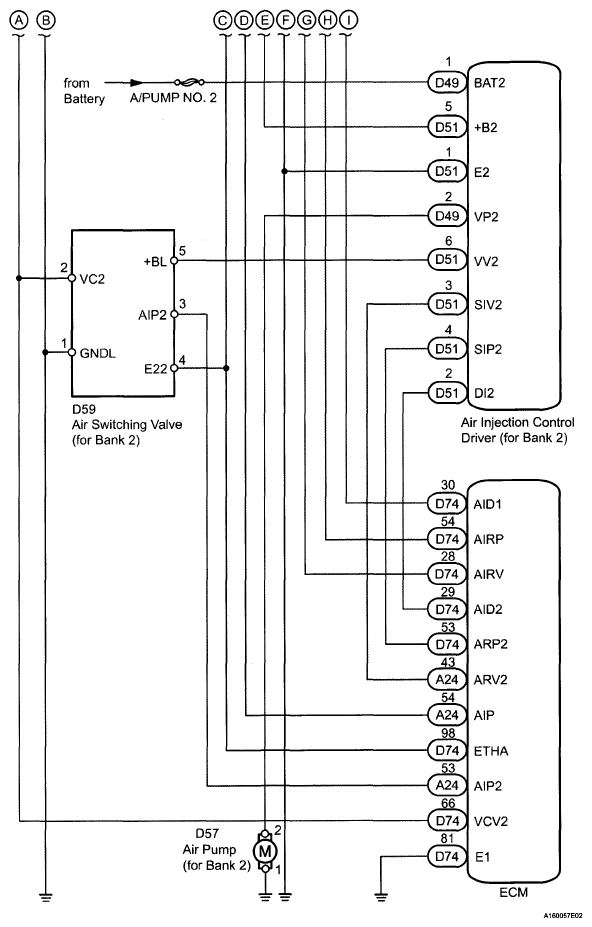

Fig 3: Emission Control - Secondary Air Injection System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
EVAP CONTROL SYSTEM DIAGRAM

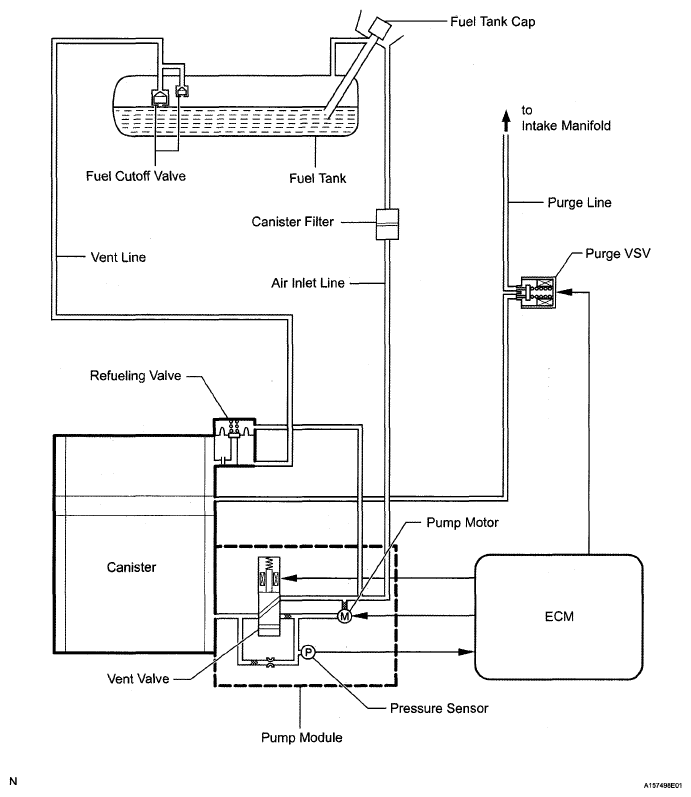

Fig 4: Emission Control - EVAP Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
EVAP SYSTEM WIRING DIAGRAM

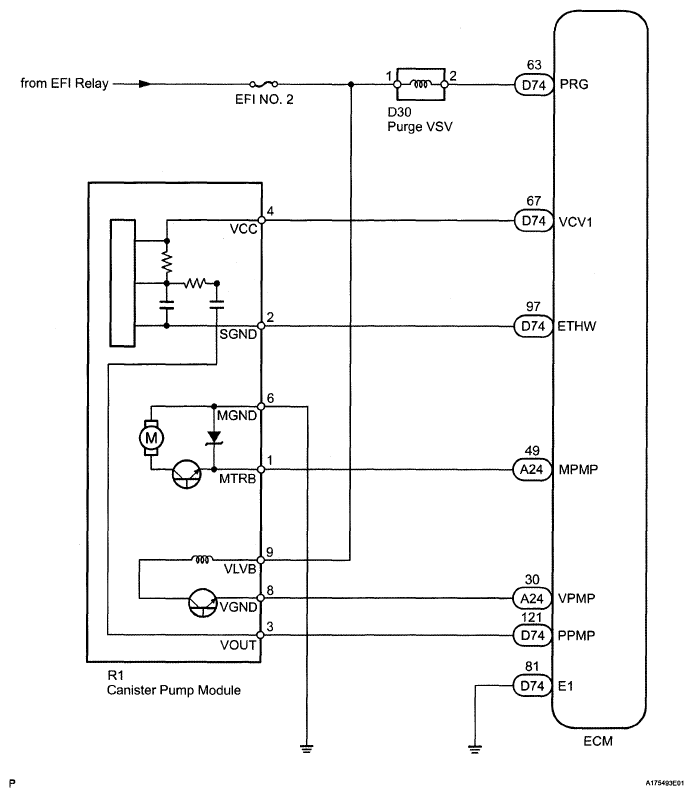

Fig 5: Emission Control - EVAP System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
