Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

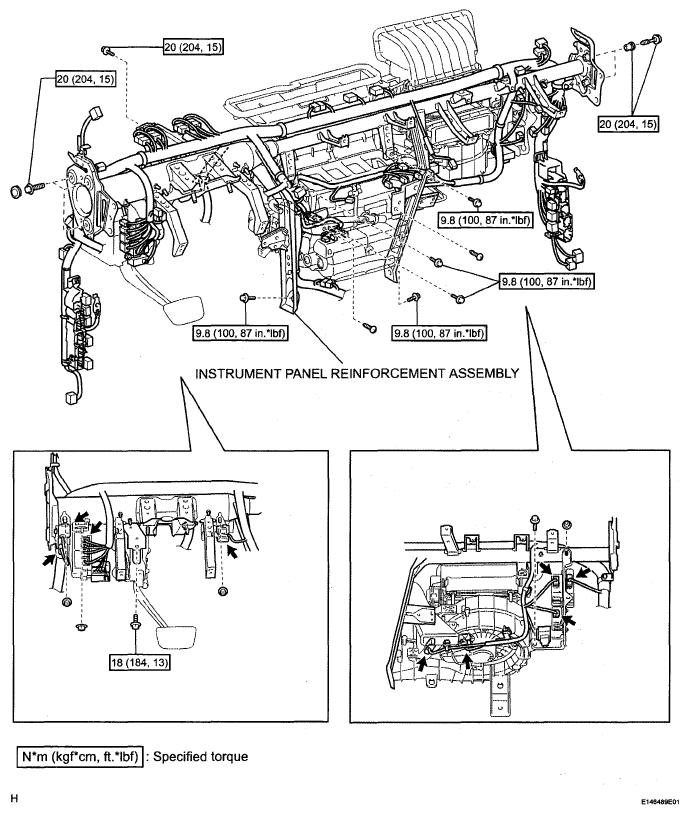

Fig 1: Identifying Air Conditioning Unit Replacement Components (1 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

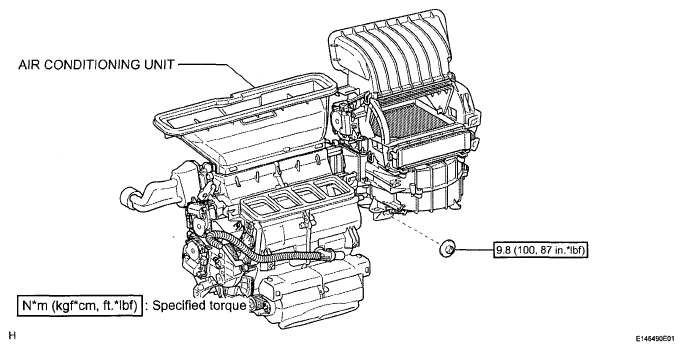

Fig 2: Identifying Air Conditioning Unit Replacement Components (2 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

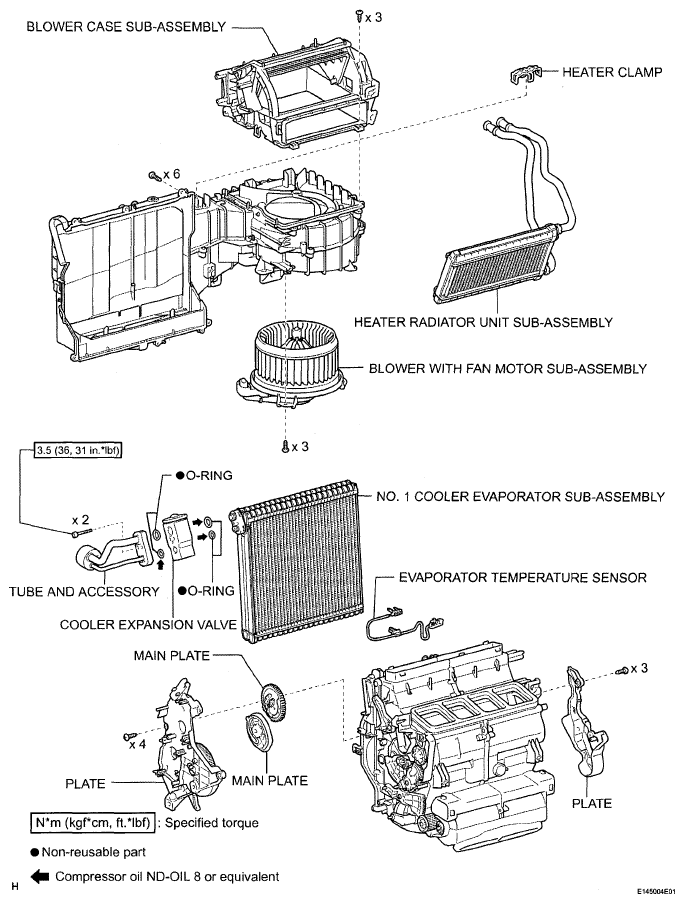

Fig 3: Identifying Air Conditioning Unit Replacement Components (3 Of 4)

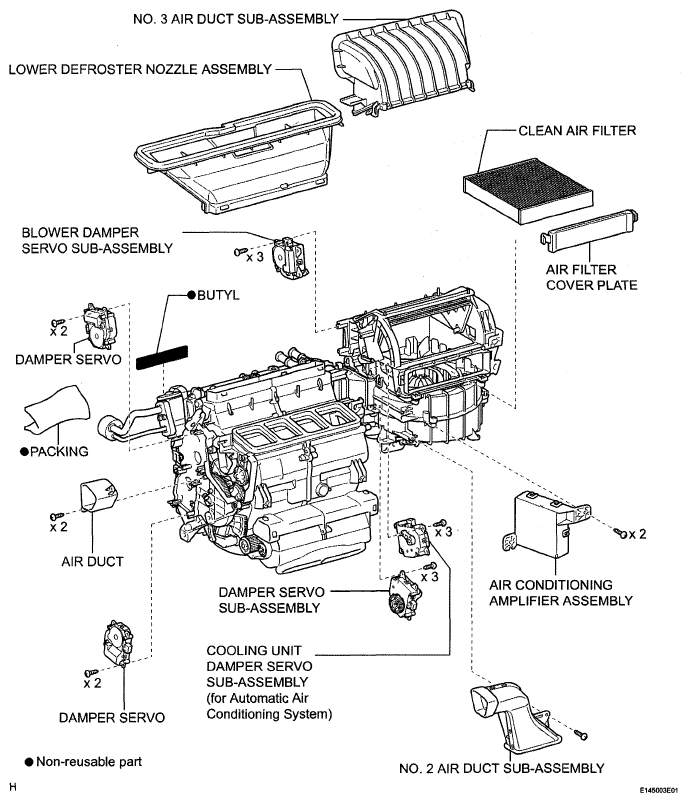

Fig 4: Identifying Air Conditioning Unit Replacement Components (4 Of 4) With Torque Specifications
