COMPRESSOR AND MAGNETIC CLUTCH (for 2UZ-FE): Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

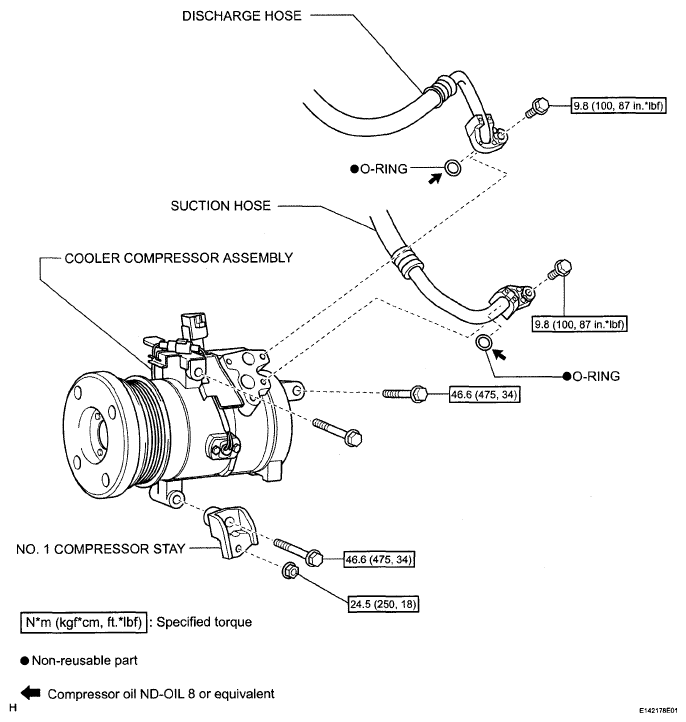

Fig 1: Identifying Compressor & Magnetic Clutch Replacement Components With Torque Specifications (For 2UZ-FE)
G05155588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
