Section 147 (Air Conditioning): Condenser: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

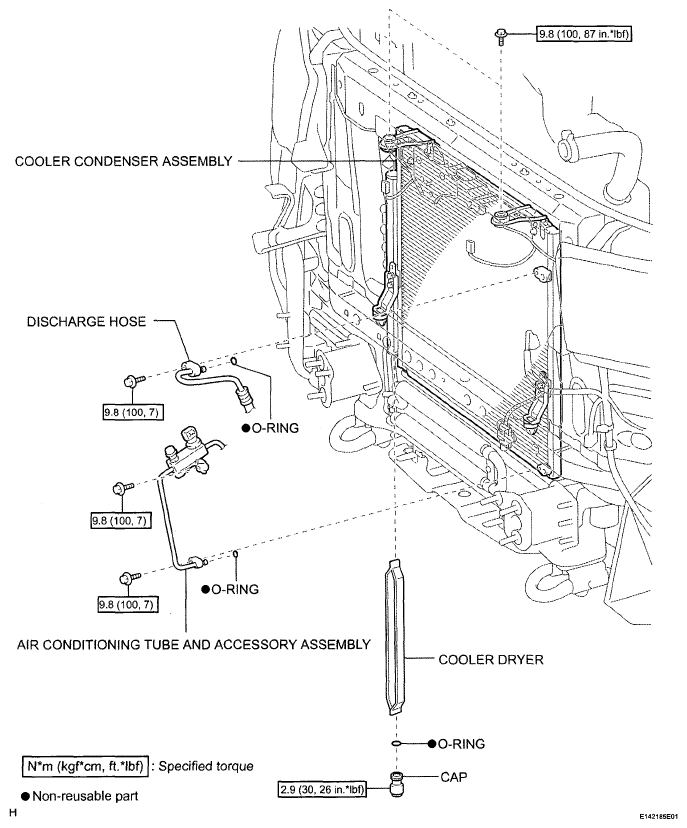

Fig 1: Identifying Condenser Replacement Components With Torque Specifications
