Refrigerant Line: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

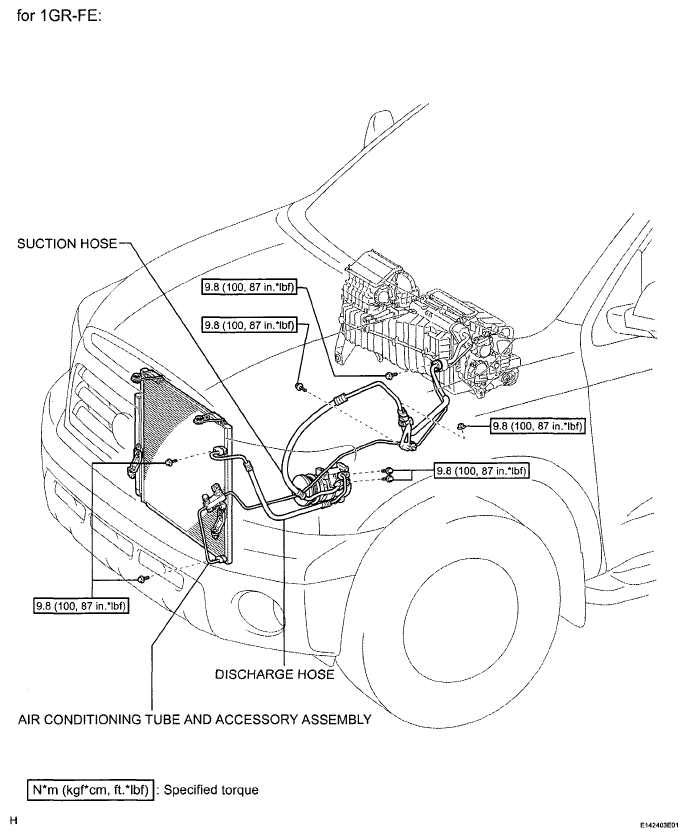

Fig 1: Identifying Refrigerant Line Replacement Components With Torque Specifications (For 1GR-FE)
G05155509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

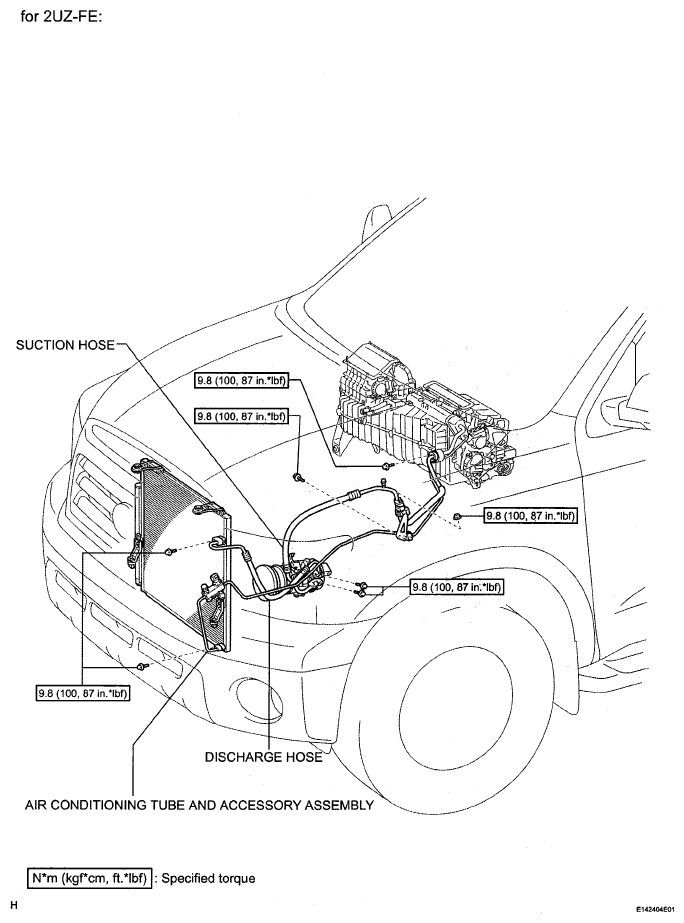

Fig 2: Identifying Refrigerant Line Replacement Components With Torque Specifications (For 2UZ-FE)
G05155510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

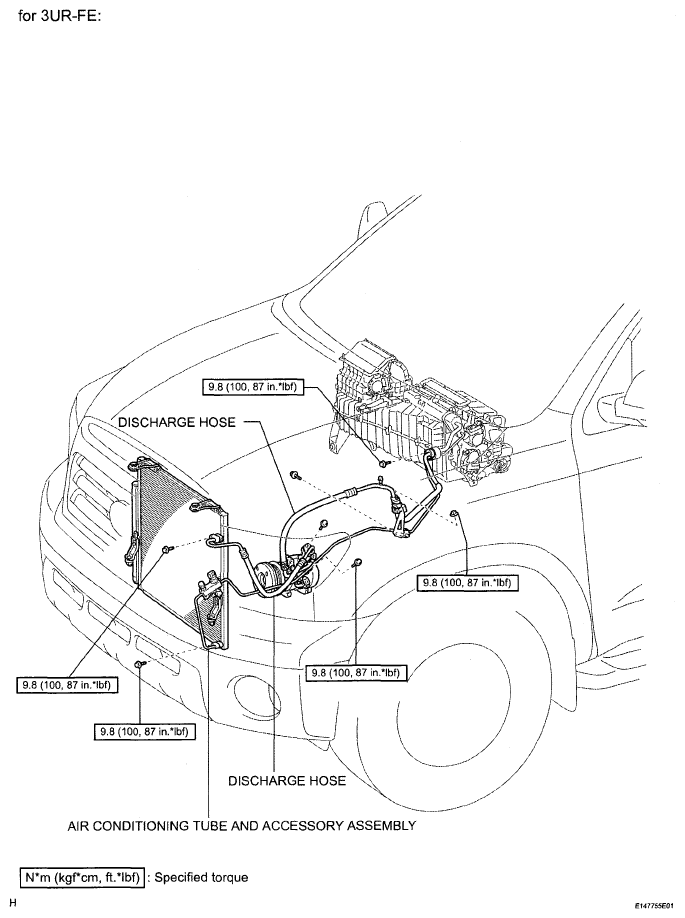

Fig 3: Identifying Refrigerant Line Replacement Components With Torque Specifications (For 3UR-FE)
G05155511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
