Transfer Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

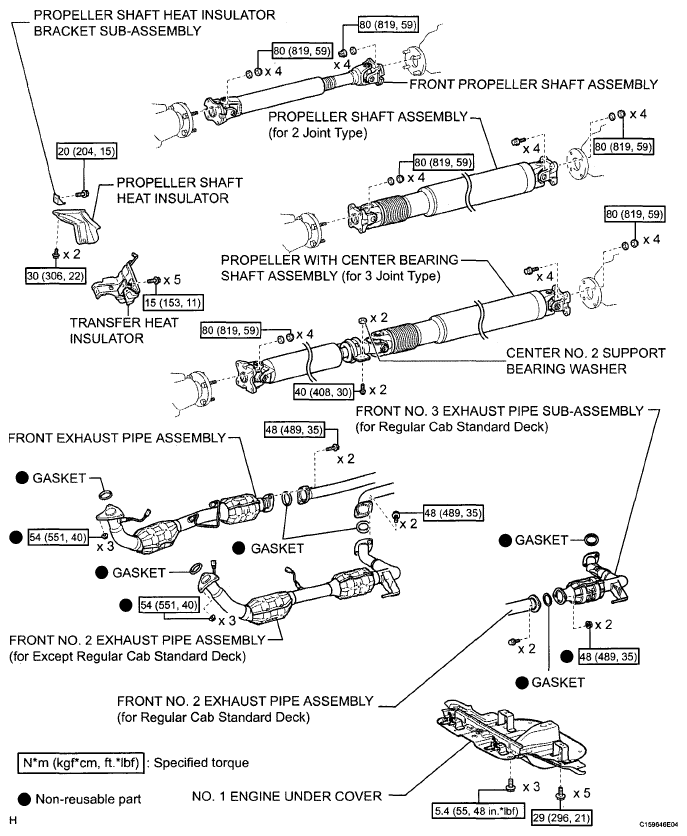

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (1 Of 10)

G05158945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

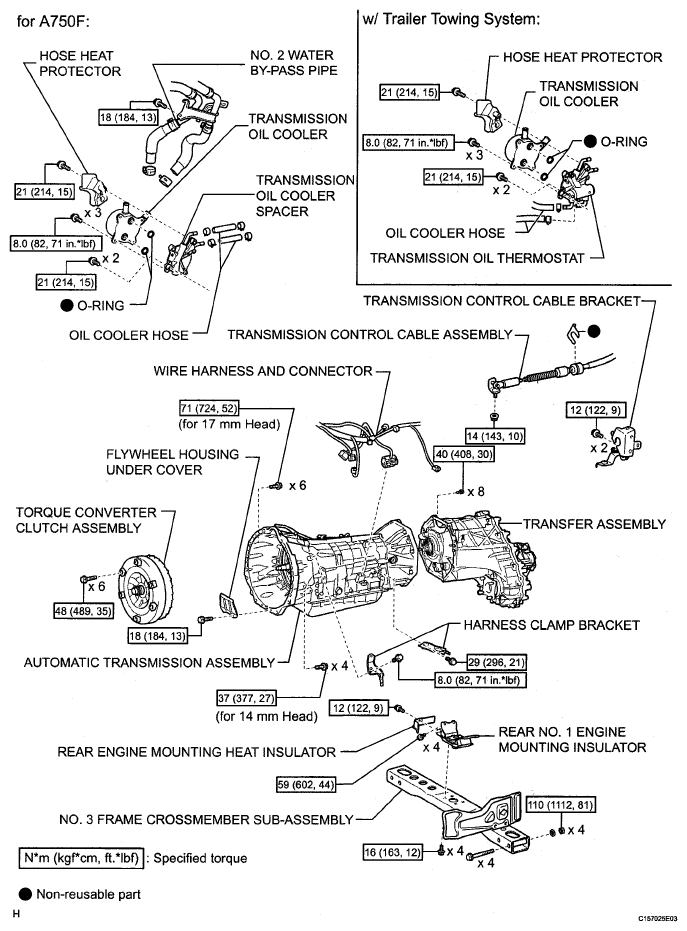

Fig 2: Identifying Transfer Assembly Replacement Components With Torque Specifications (2 Of 10)

G05158946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Transfer Assembly Replacement Components With Torque Specifications (3 Of 10)

G05158947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

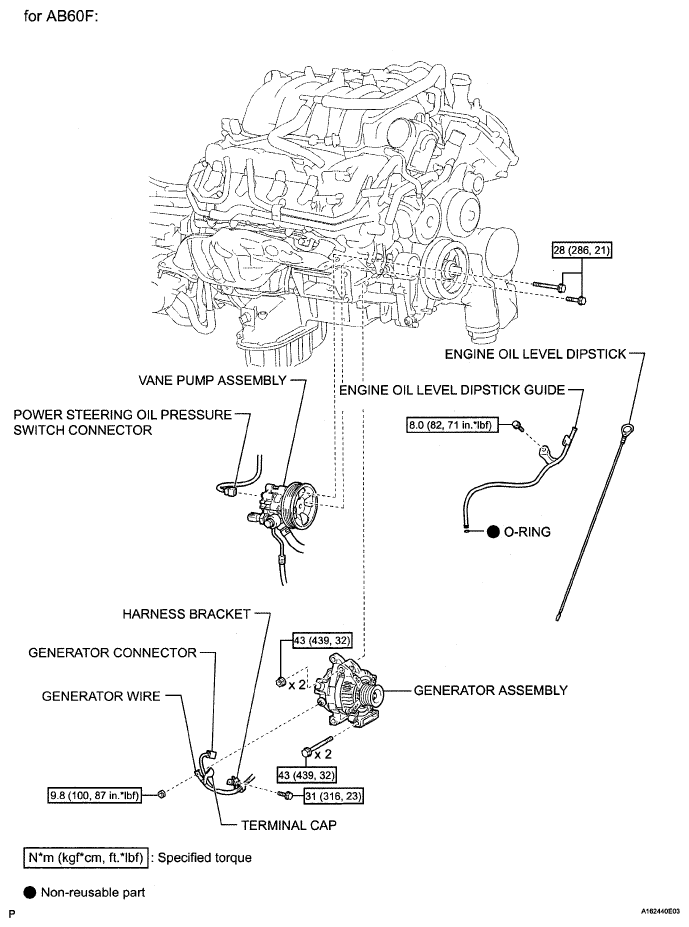

Fig 4: Identifying Transfer Assembly Replacement Components With Torque Specifications (4 Of 10)

G05158948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

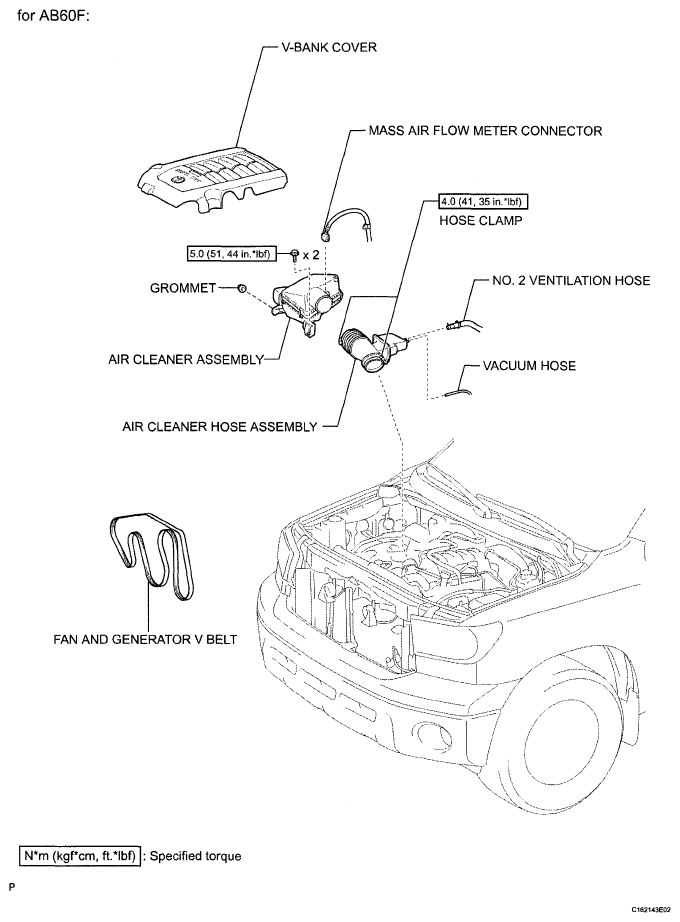

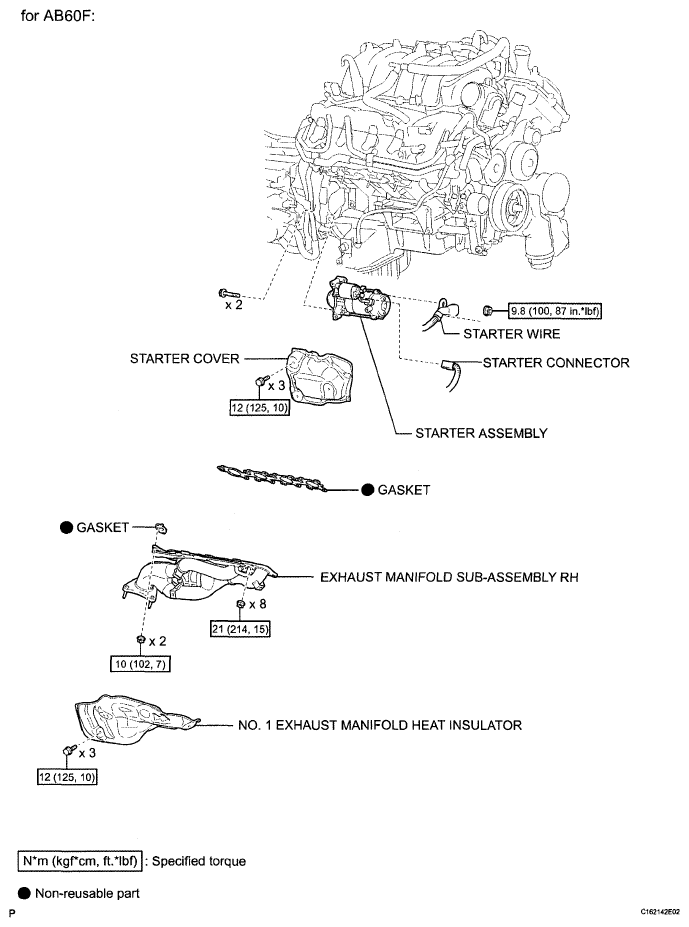

Fig 5: Identifying Transfer Assembly Replacement Components With Torque Specifications (5 Of 10)

G05158949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

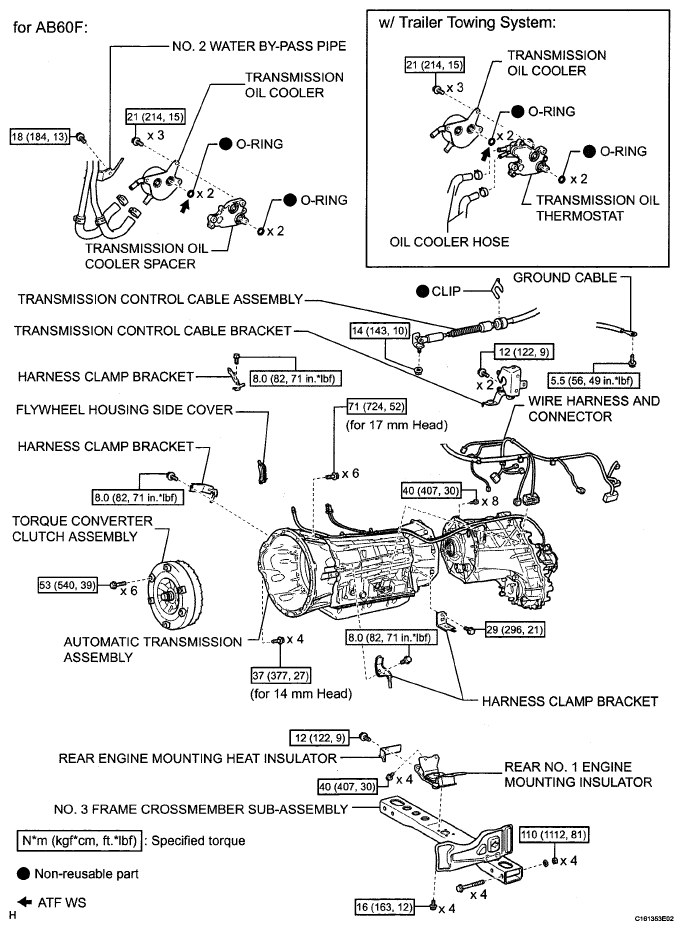

Fig 6: Identifying Transfer Assembly Replacement Components With Torque Specifications (6 Of 10)

G05158950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

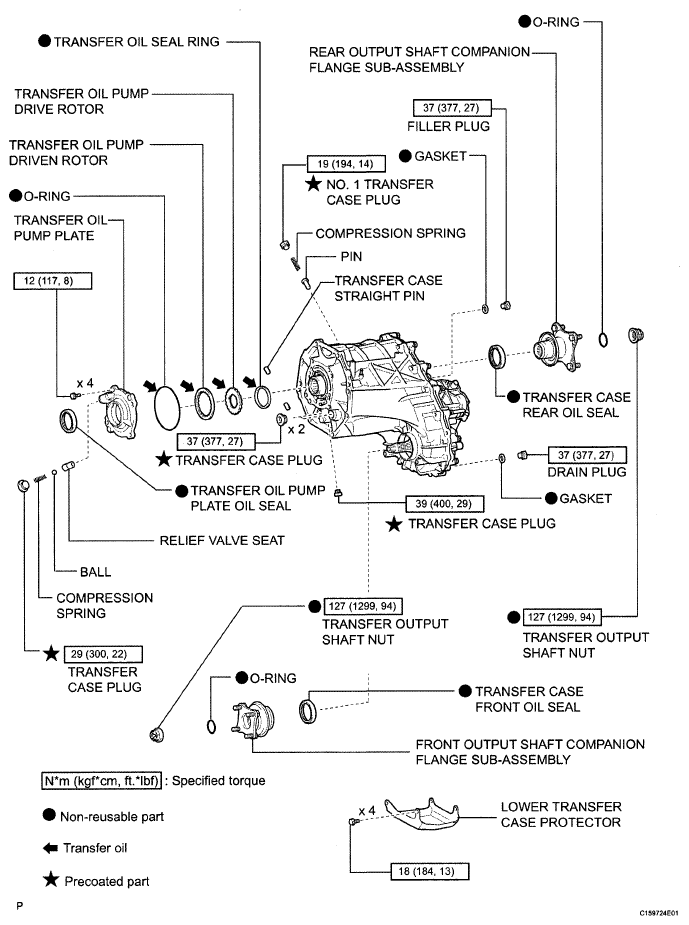

Fig 7: Identifying Transfer Assembly Replacement Components With Torque Specifications (7 Of 10)

G05158951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

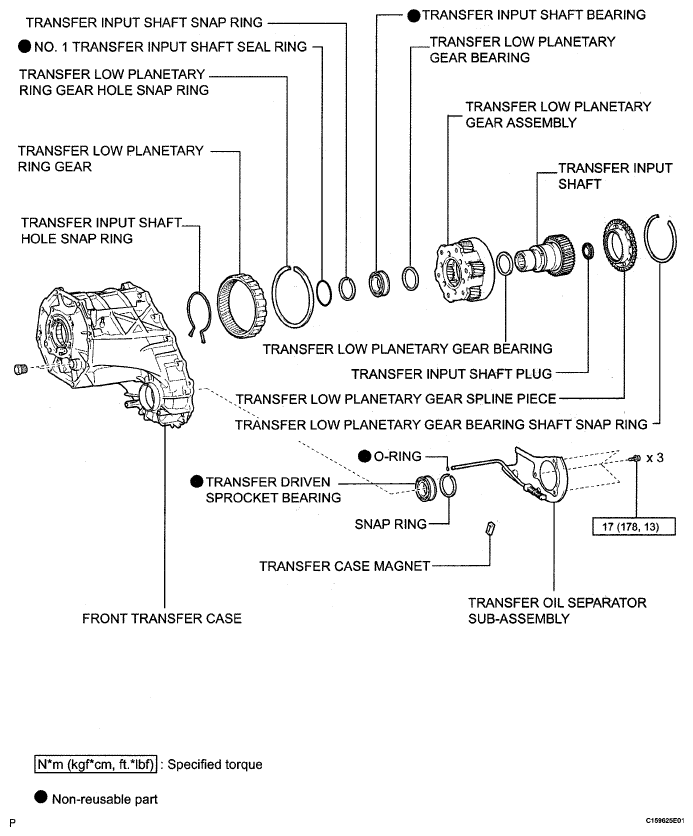

Fig 8: Identifying Transfer Assembly Replacement Components With Torque Specification (8 Of 10)

G05158952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

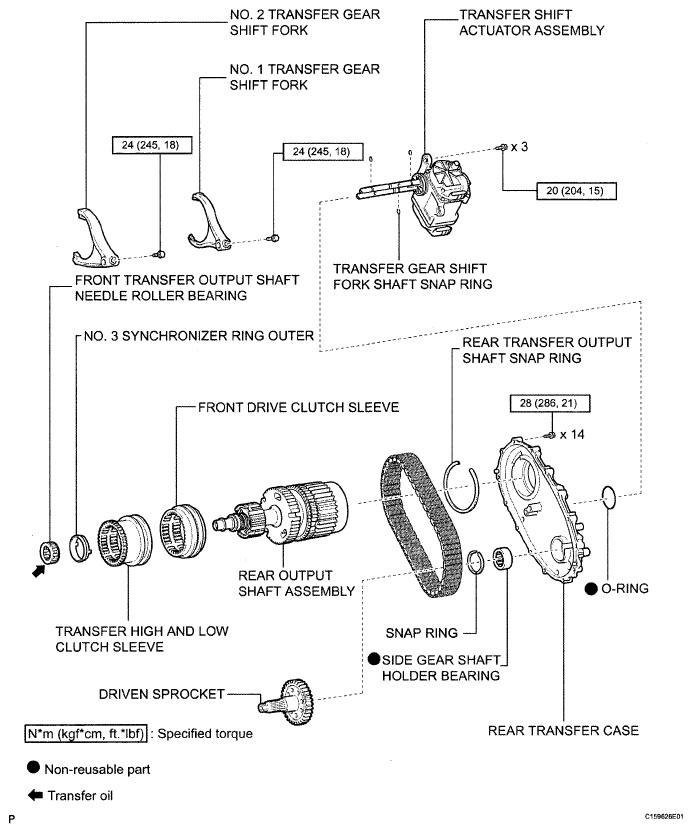

Fig 9: Identifying Transfer Assembly Replacement Components With Torque Specifications (9 Of 10)

G05158953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

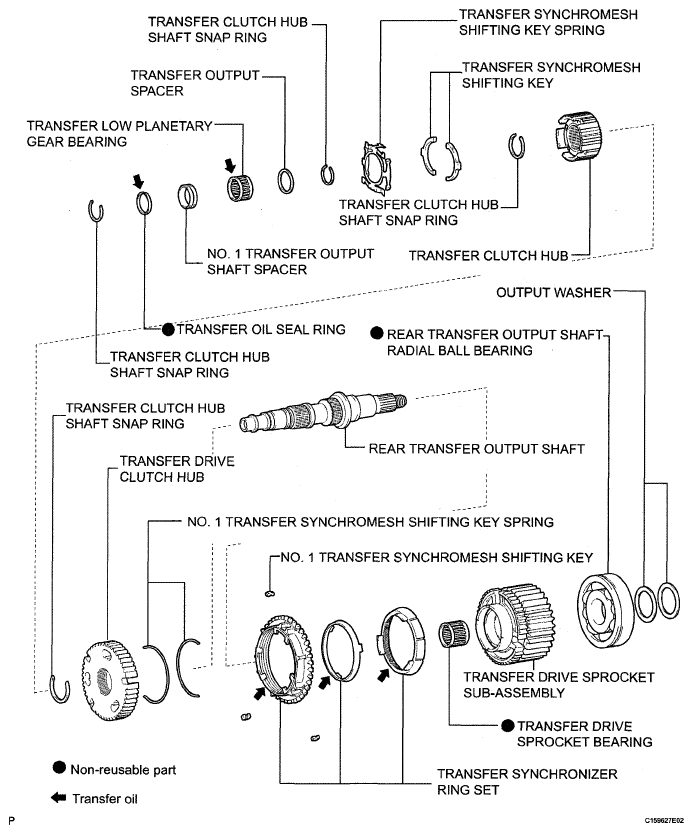

Fig 10: Identifying Transfer Assembly Replacement Components (10 Of 10)

G05158954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
