Timing Chain: Component

WARNING: This page is about a different car, the 2009 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

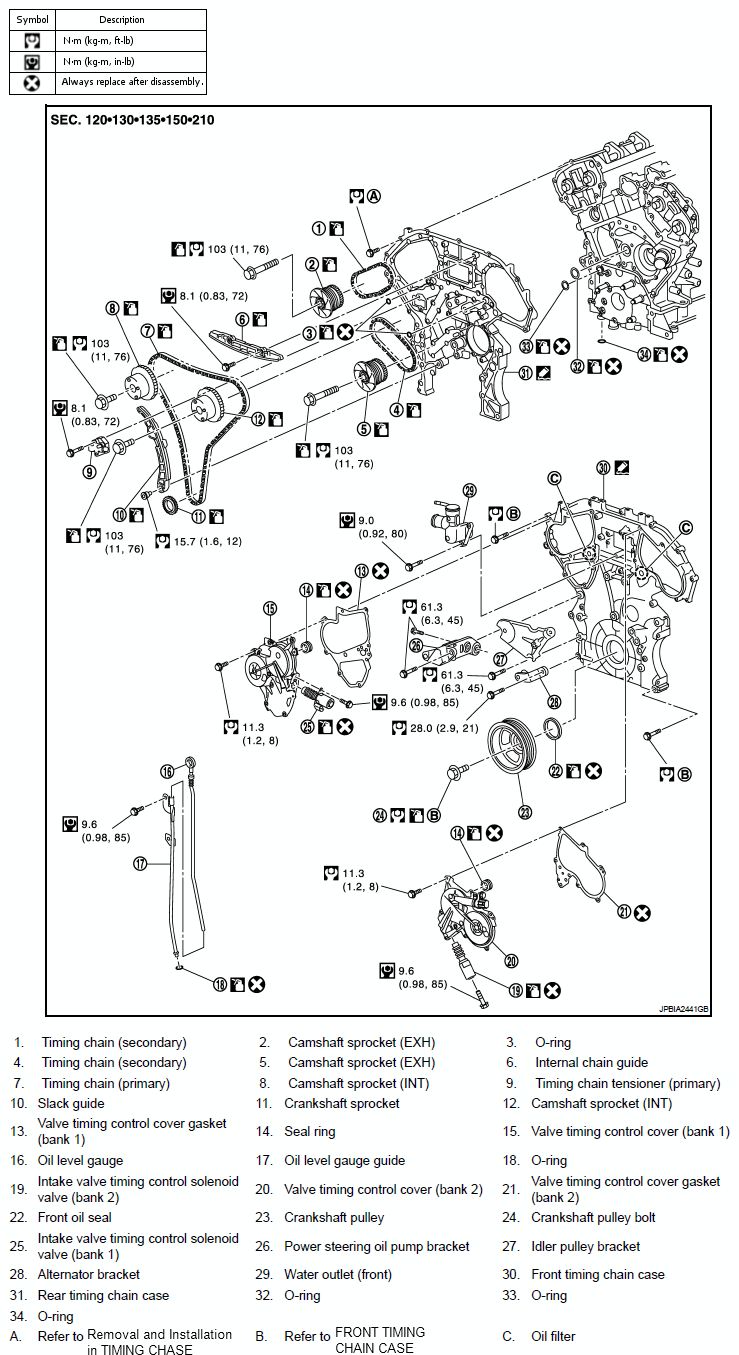

Fig 1: Exploded View Of Timing Chain With Torque Specifications
G06304864Courtesy of NISSAN MOTOR CO., U.S.A.
