Front Door Courtesy Switch: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

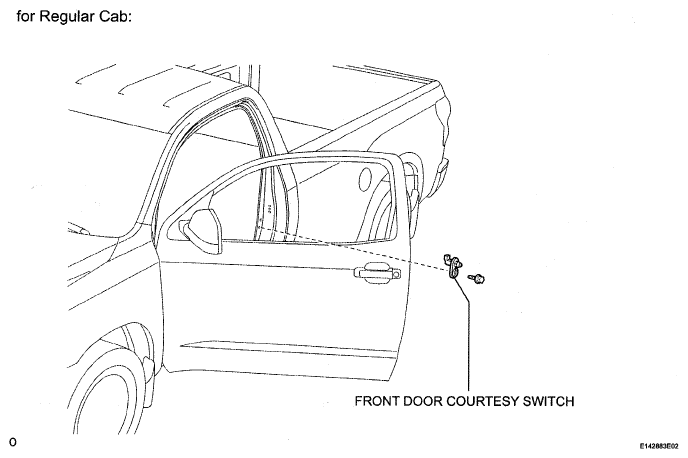

Fig 1: Identifying Front Door Courtesy Switch (For Regular Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

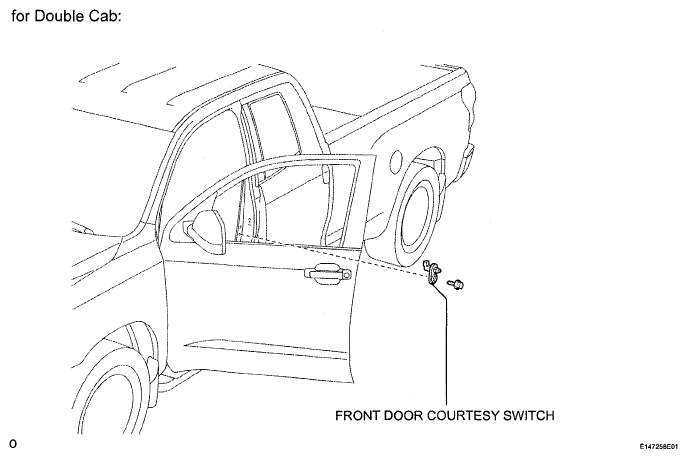

Fig 2: Identifying Front Door Courtesy Switch (For Double Cab)

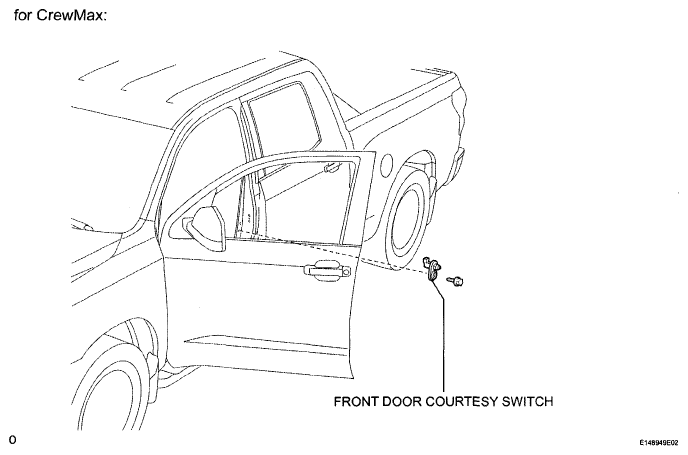

Fig 3: Identifying Front Door Courtesy Switch (For CrewMax)
