Headlight Dimmer Switch: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

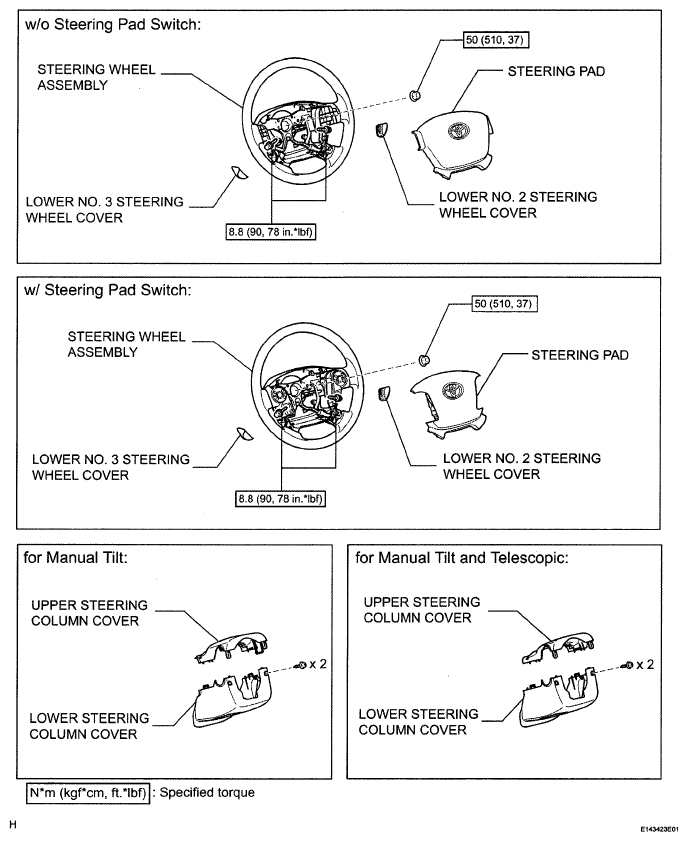

Fig 1: Headlight Dimmer Switch Replacement Components With Torque Specifications (1 Of 2)
G05160918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

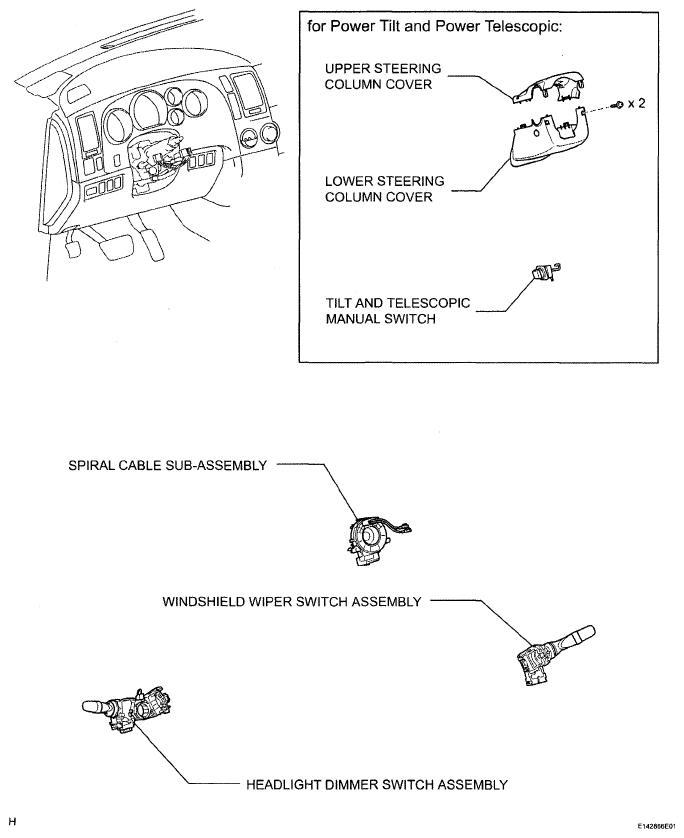

Fig 2: Identifying Headlight Dimmer Switch Components (2 Of 2)
G05160919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
