Rear Door Courtesy Switch: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

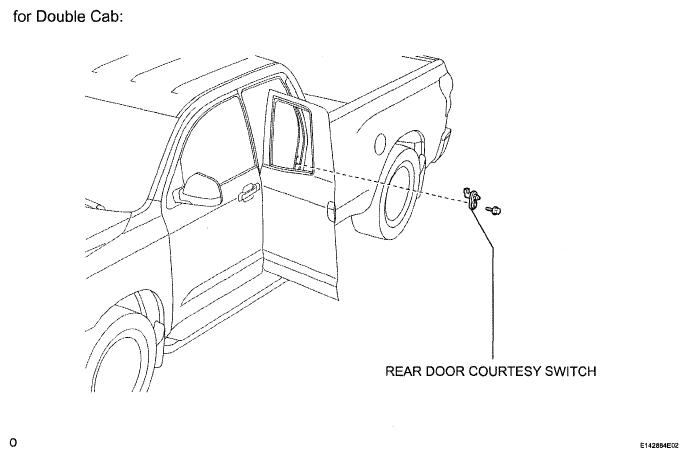

Fig 1: Identifying Rear Door Courtesy Switch (For Double Cab)
G05160949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

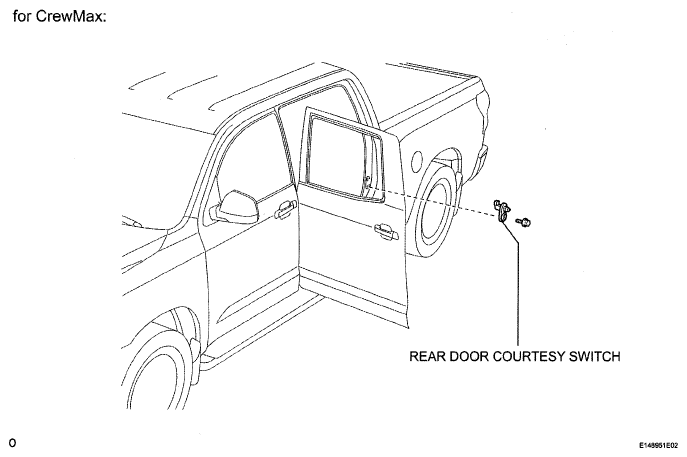

Fig 2: Identifying Rear Door Courtesy Switch (For CrewMax)
G05160950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
