Parts Location

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

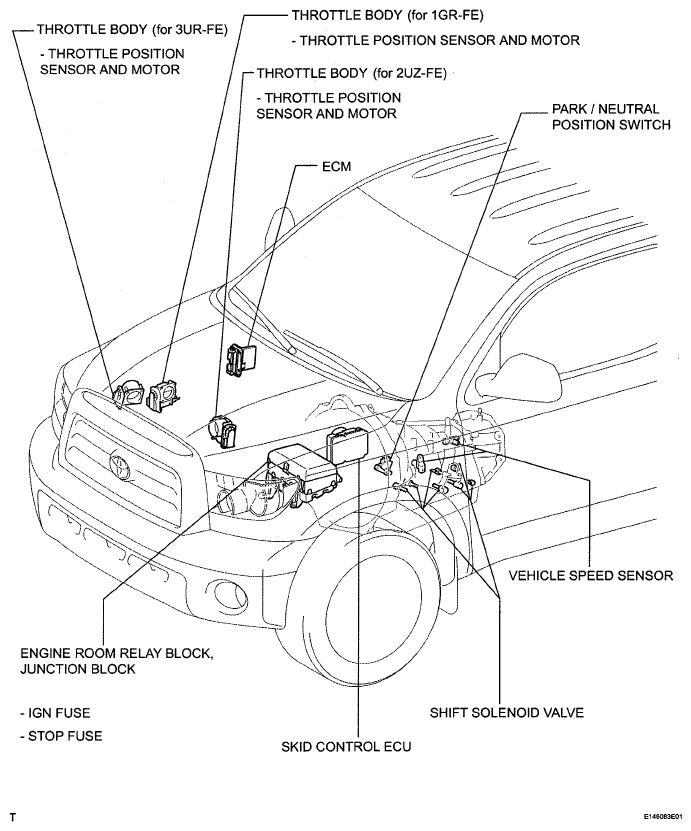

Fig 1: Identifying Cruise Control System Components Location (1 Of 2)
G05160692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

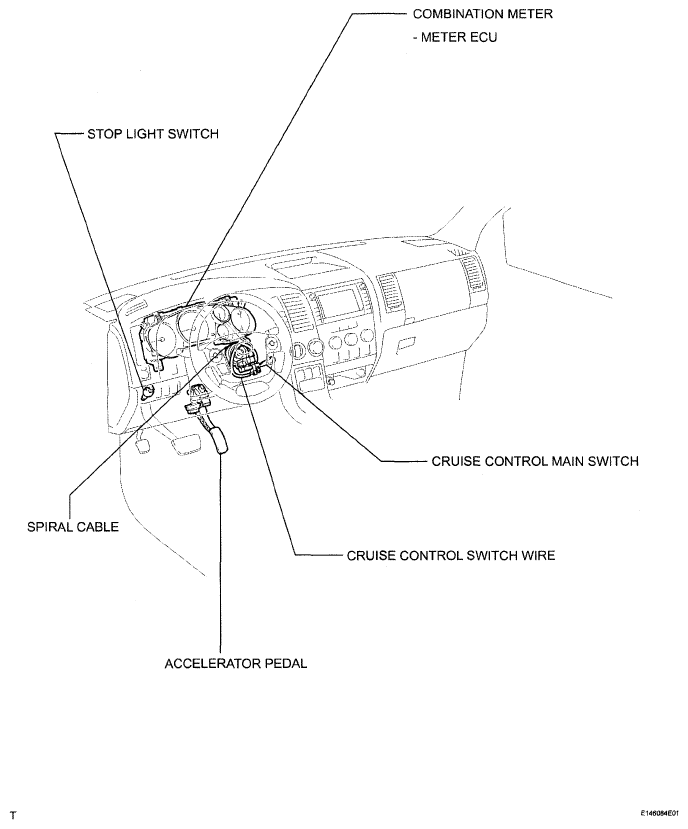

Fig 2: Identifying Cruise Control System Components Location (2 Of 2)
G05160693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
