Power Window Master Switch: Removal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT UPPER ARMREST BASE PANEL LH
1. Using a screwdriver, detach the 2 clips and 5 claws, and remove the front upper armrest base panel.

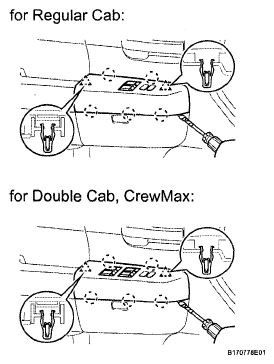

  Fig 1: Removing Front Upper Armrest Base Panel Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the master switch connector.

  Fig 2: Identifying Master Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
1. Remove the 3 screws and master switch.

  Fig 3: Identifying Power Window Regulator Master Switch Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
