Service Information
›
Consult-III/GST Checking System
›
CONSULT-III Function and System Application*1
CONSULT-III Function and System Application*1

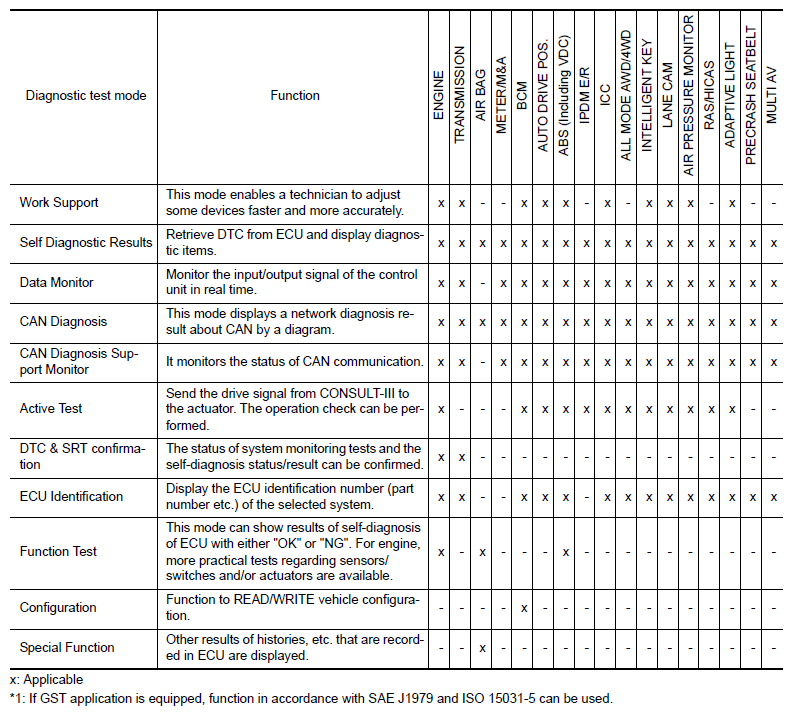

Fig 1: Diagnostic Test Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
