Removal and Installation: Notes

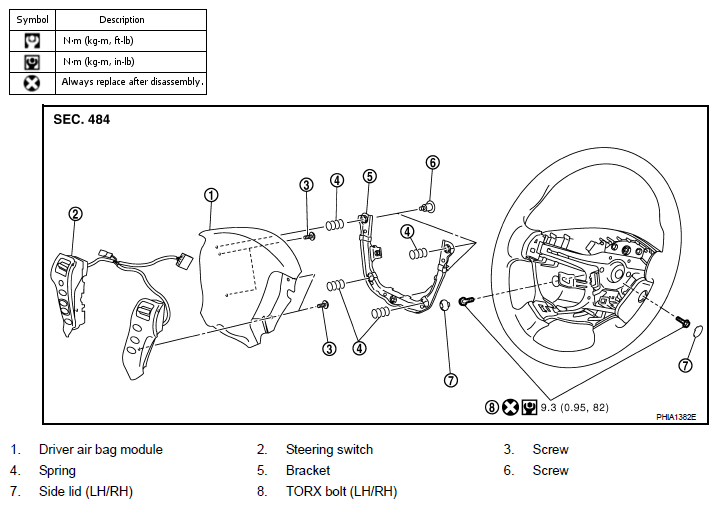

Fig 1: Exploded View Of Driver Air Bag Module With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT " for symbols in the figure.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3 minutes.
Always work from the side of air bag module. Never work from the front of it.
Never use air tools or electric tools for servicing.
