Removal and Installation: Components

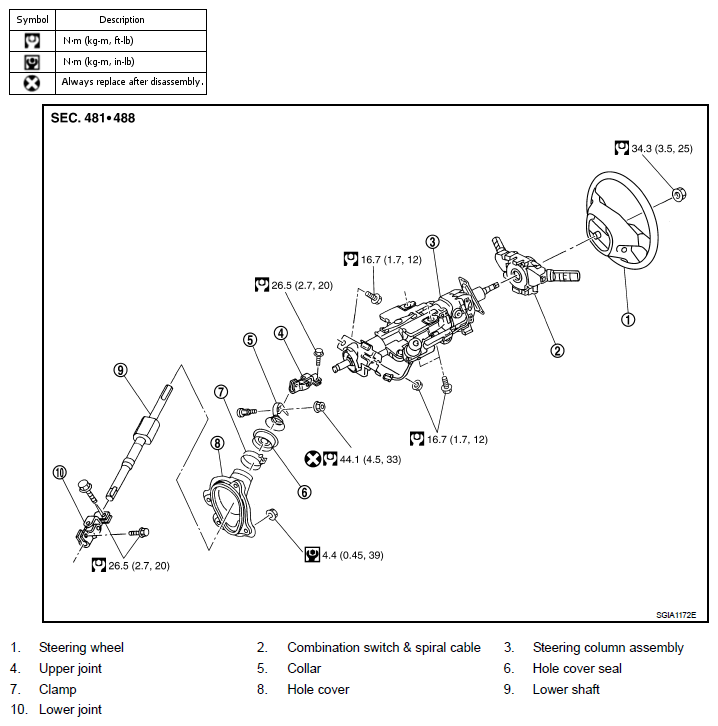

Fig 1: Steering Column Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT ", for the symbols in the figure.

CAUTION:

Do not give axial impact to steering column assembly during removal and installation.
Do not move steering gear assembly when removing steering column assembly.
