Front Suspension Assembly: Component

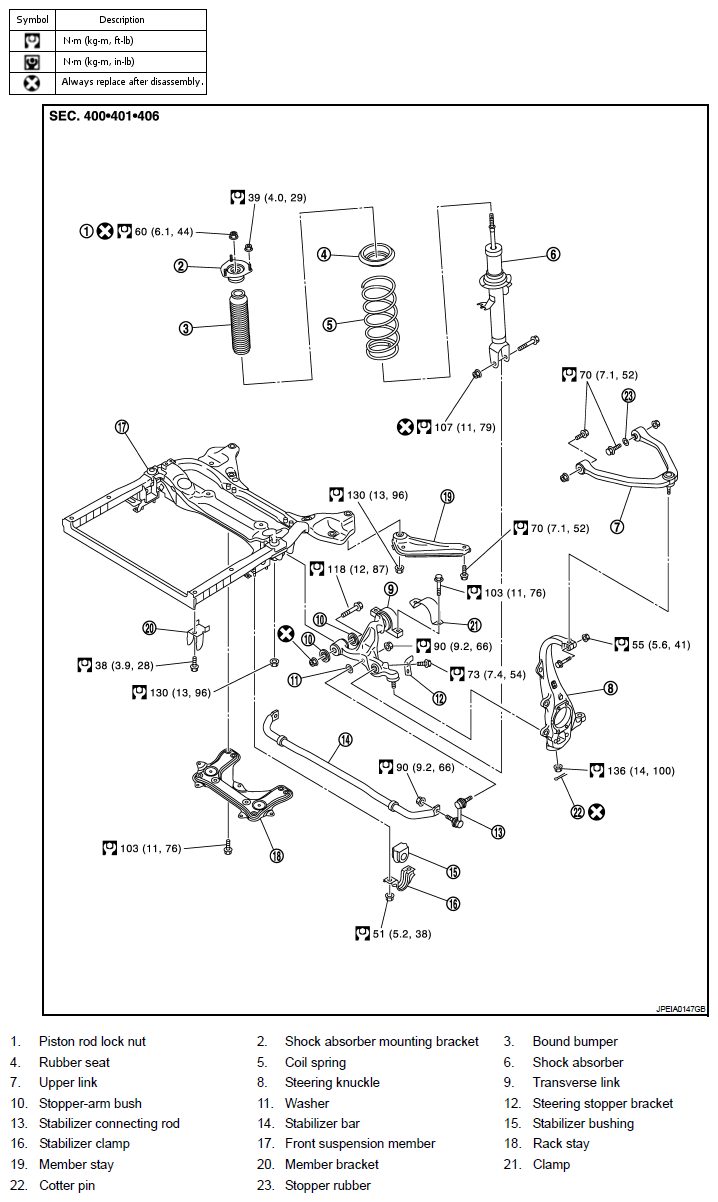

Fig 1: Exploded View Of Front Suspension Assembly Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Component ", for the symbols in the figure.
