Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
[7AT: Re7R01A]
›
Function Diagnosis
›
Shift Pattern Control
›
Manual Mode
›
MANUAL MODE : System Diagram
MANUAL MODE : System Diagram

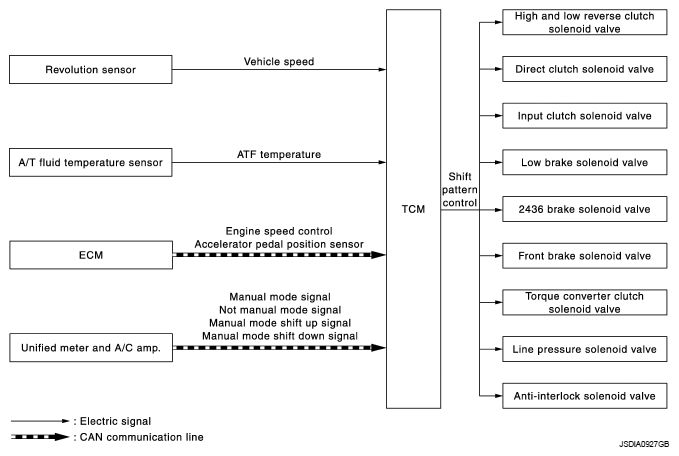

Fig 1: Manual Mode - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
