Disassembly And Assembly
›
Front Center Console
›
Exploded View
Exploded View

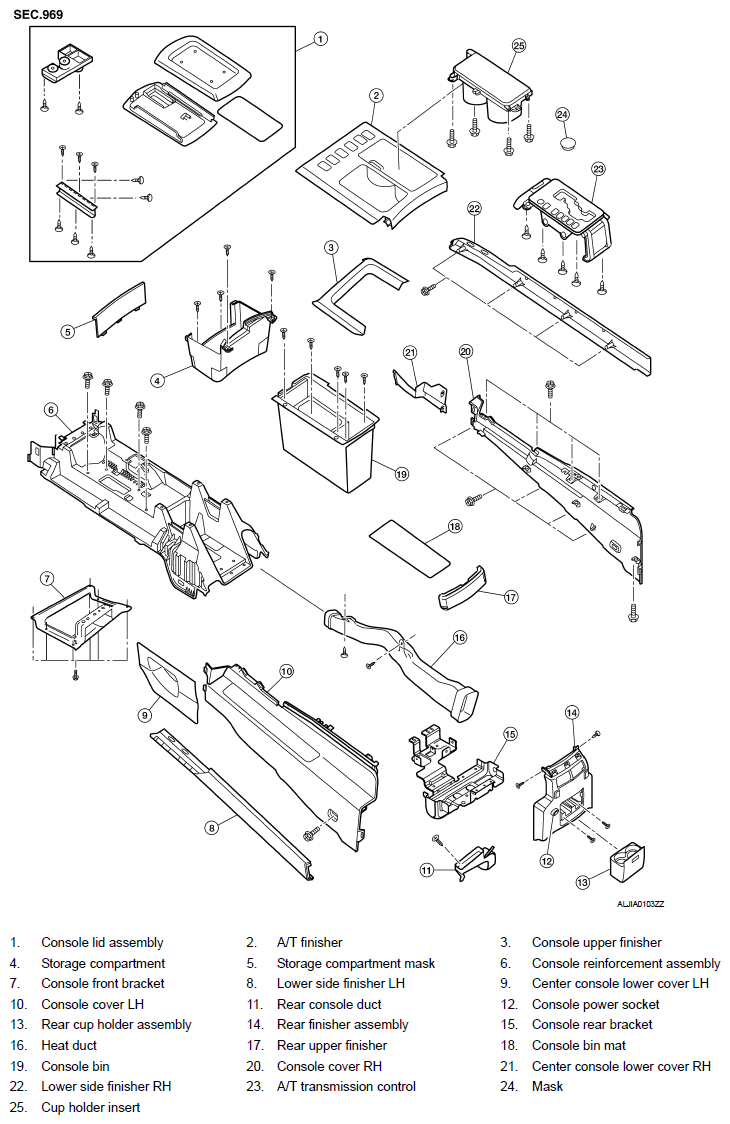

Fig 1: Exploded View Of Front Center Console
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
