ICC Sensor

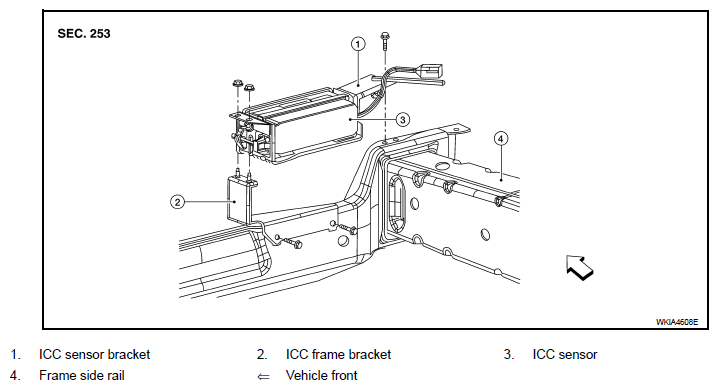

Fig 1: Exploded View Of ICC Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Perform the laser beam aiming procedure every time the ICC sensor is removed or installed. Refer to INSPECTION AND ADJUSTMENT .
