FixVault
Home
›
Infiniti
›
2009
›
QX56 AWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Security Control System
›
Function Diagnosis
›
Vehicle Security System
›
Component Parts Location
Component Parts Location

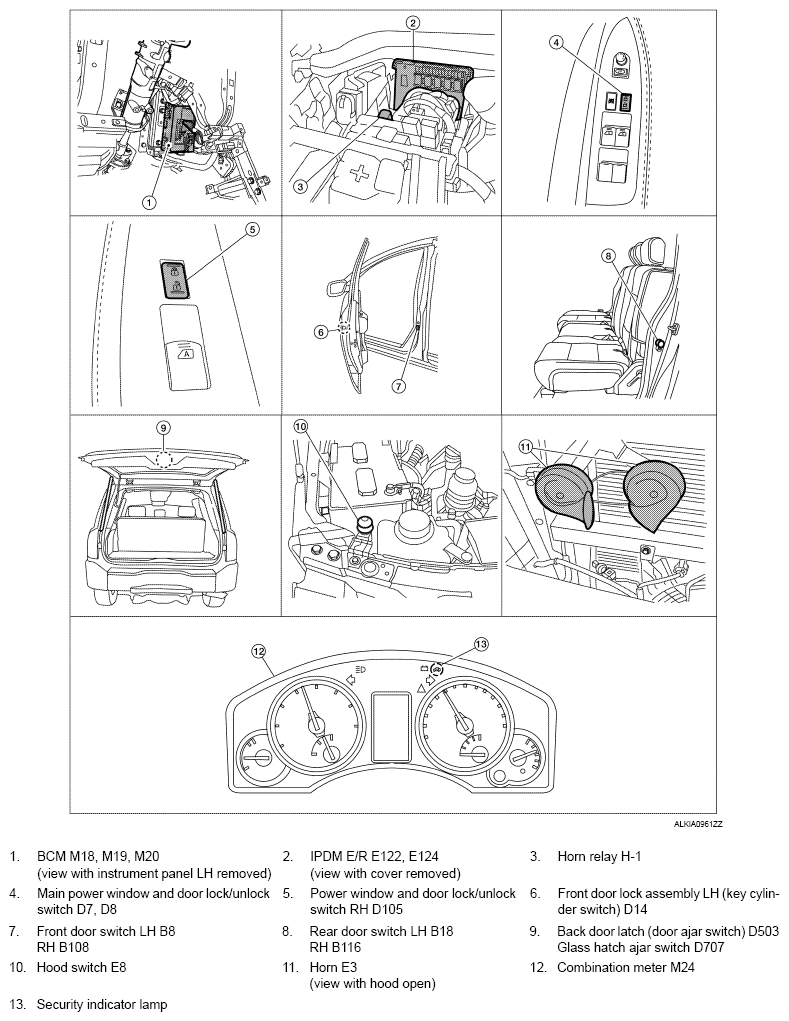

Fig 1: Identifying Vehicle Security System Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
