Component Parts Location
Component Parts Location

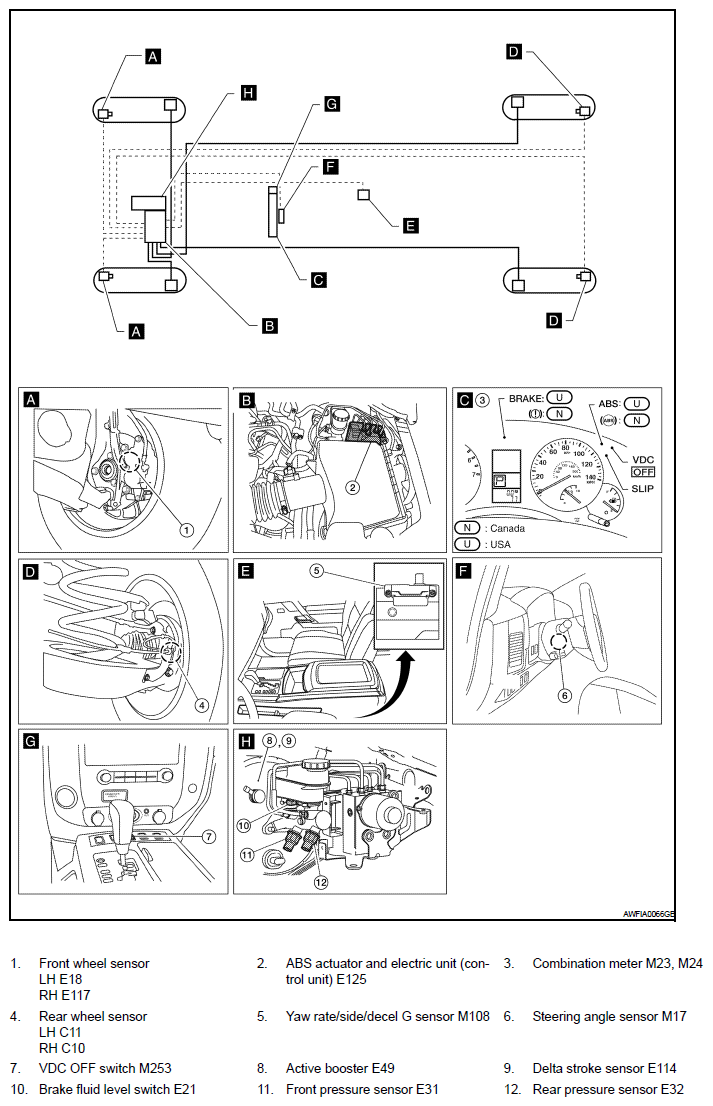

Fig 1: Identifying ABS Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
