IPDM E/R (Intelligent Power Distribution Module Engine Room): Wiring Diagram

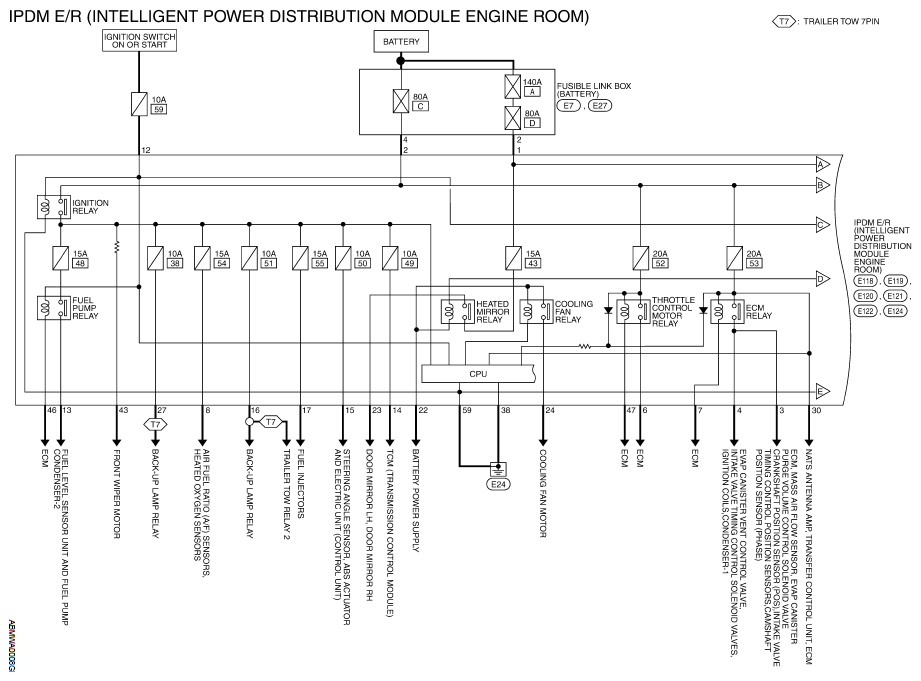

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

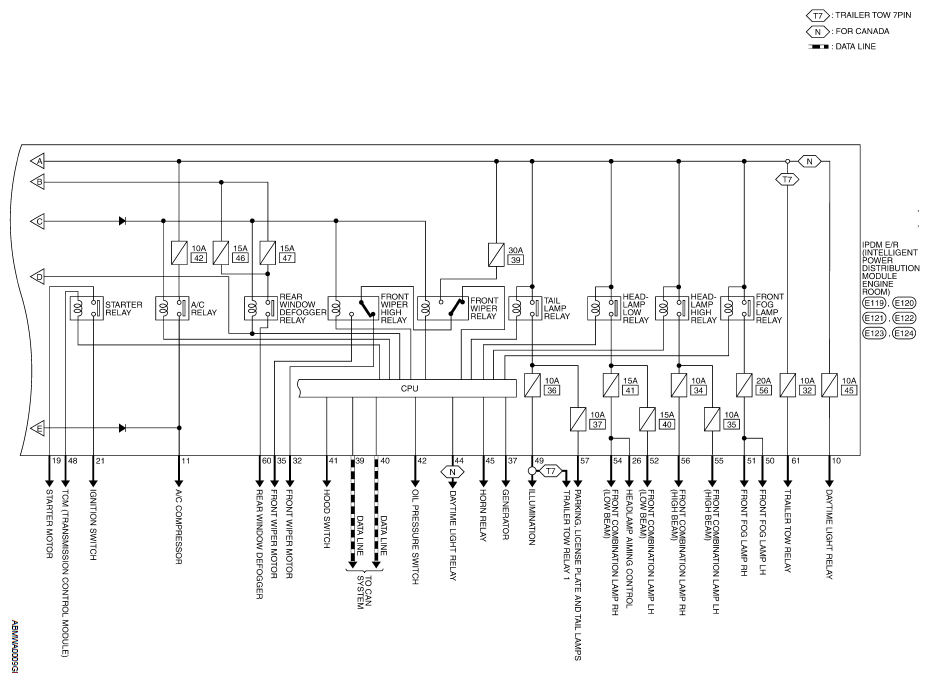

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

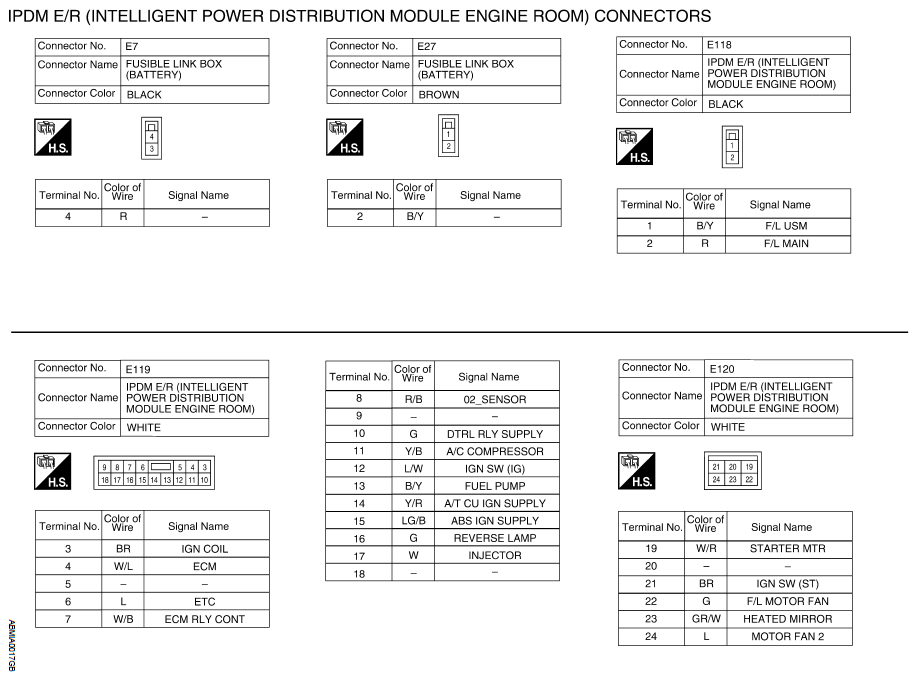

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

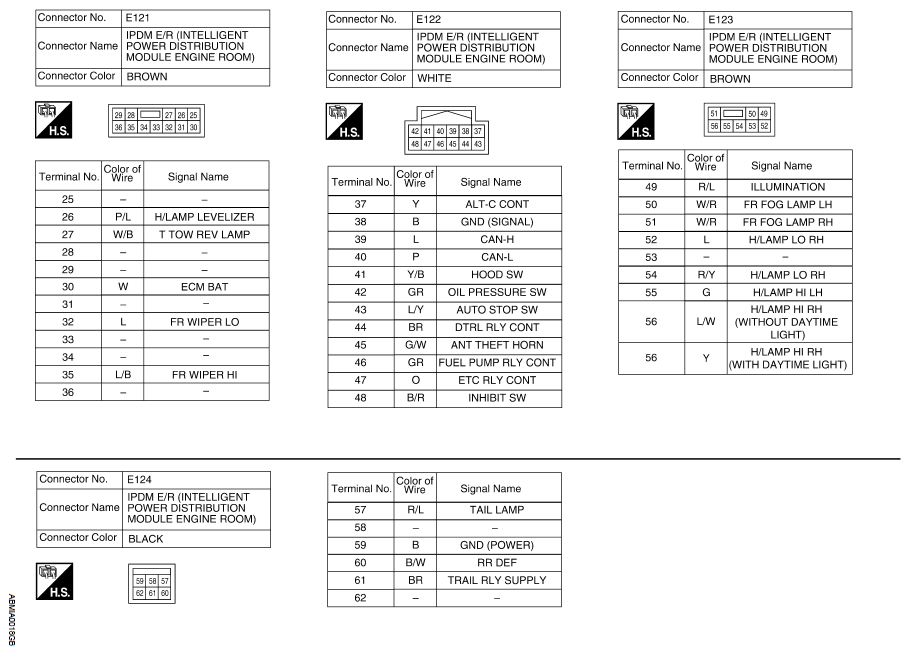

Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
