Home › Infiniti › 2009 › QX56 AWD › Repair and Diagnosis › Electrical › Gauges › Instrument Panel › On-Vehicle Repair › Cluster Lid A › Exploded View

Exploded View

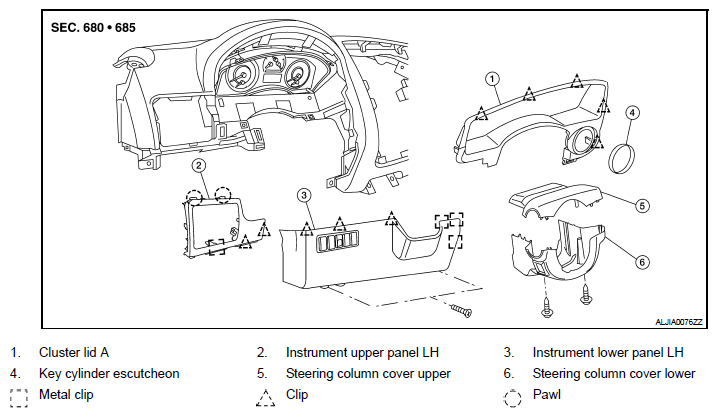

Fig 1: Exploded View Of Cluster Lid A
G06320046Courtesy of NISSAN MOTOR CO., U.S.A.
