Radiator
›
Exploded View
Exploded View

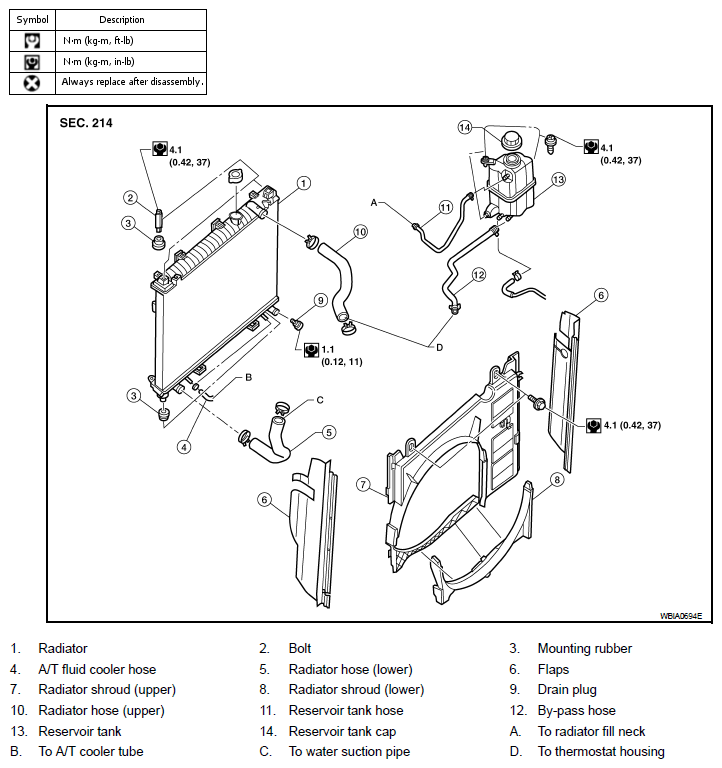

Fig 1: Exploded View Of Radiator Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
