Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Function Diagnosis
›
Lubrication System
›
Schematic
Lubrication System: Schematic

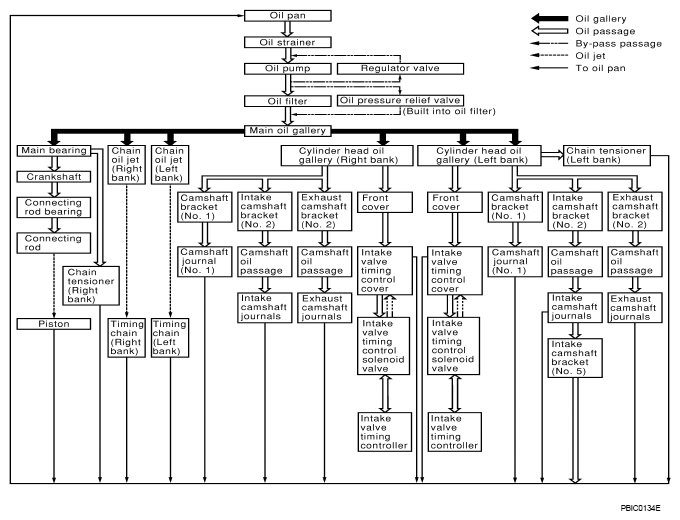

Fig 1: Lubrication System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
