Evaporative Emission Line Drawing

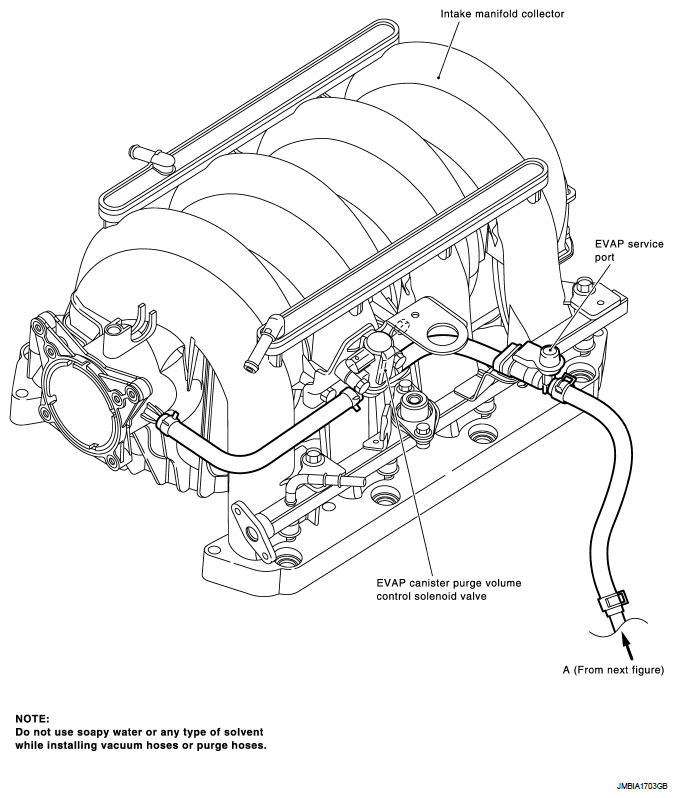

Fig 1: Evaporative Emission Line Drawing (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

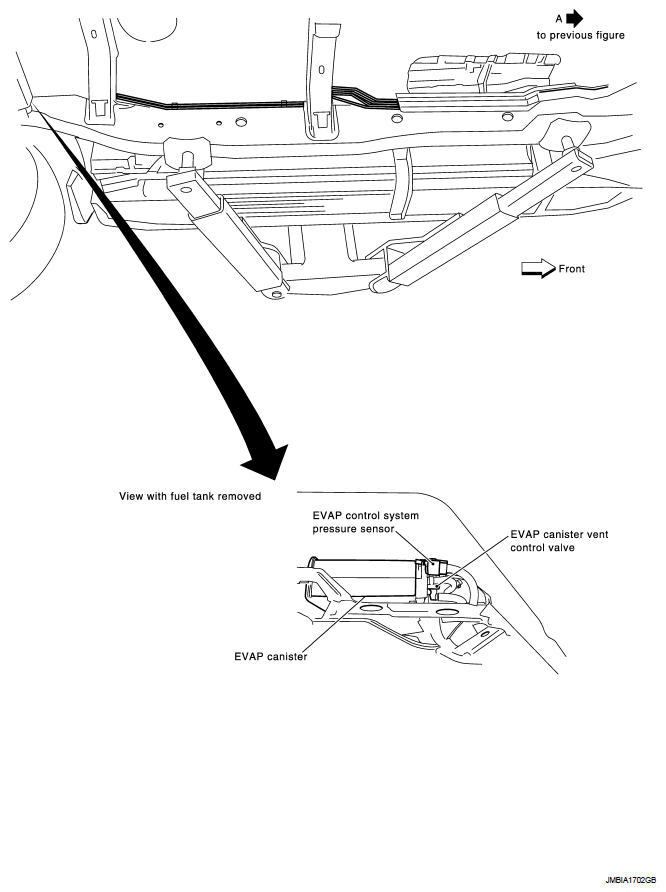

Fig 2: Evaporative Emission Line Drawing (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
