Suspension Control System
›
Component Parts Location
Component Parts Location

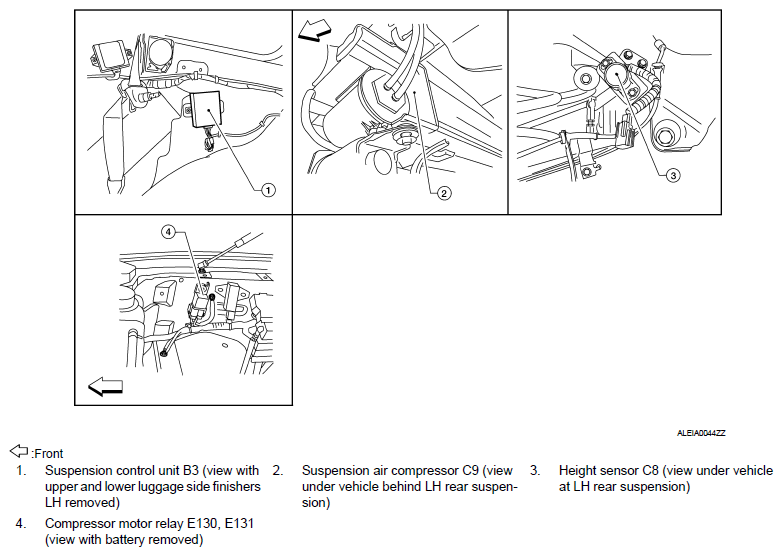

Fig 1: Identifying Suspension Control System Parts Locations
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
