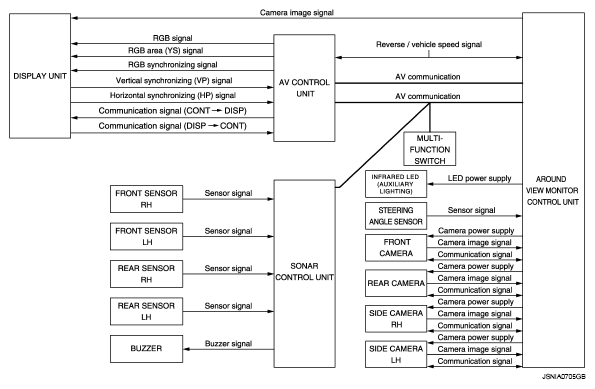

Home › Infiniti › 2010 › EX35 Base, AWD › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Audio, Visual, Navigation System › BOSE Audio With Navigation › Function Diagnosis › Around View Monitor System › System Diagram
