Base Audio Without Navigation
›
Function Diagnosis
›
Audio System
›
System Diagram
System Diagram

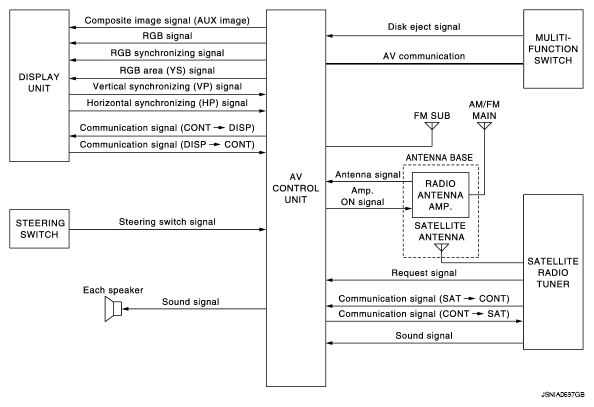

Fig 1: Audio -- System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
An antenna base integrated with radio antenna and satellite radio antenna is adopted.
Fig 2: Radio And Satellite Radio Antenna Communication Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
