Back Door Trim
›
Exploded View
Exploded View

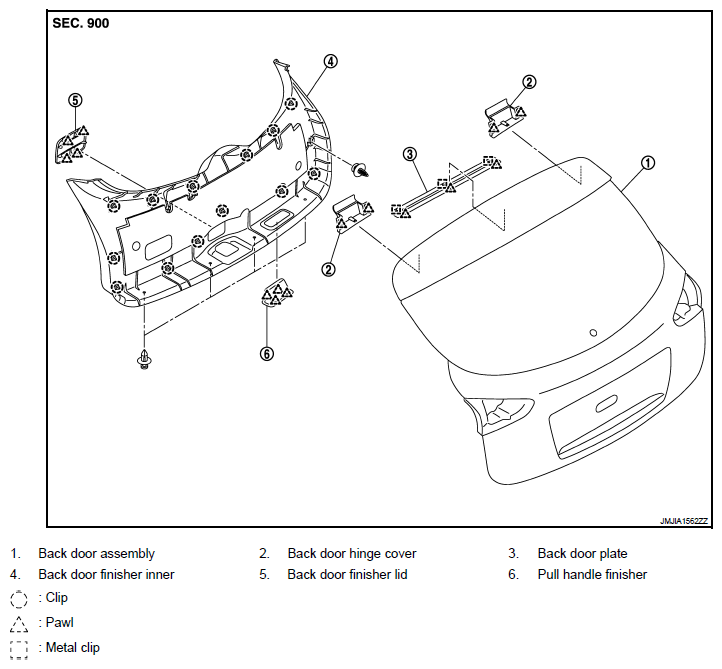

Fig 1: Identifying Back Door Trim Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
