Component Parts Location

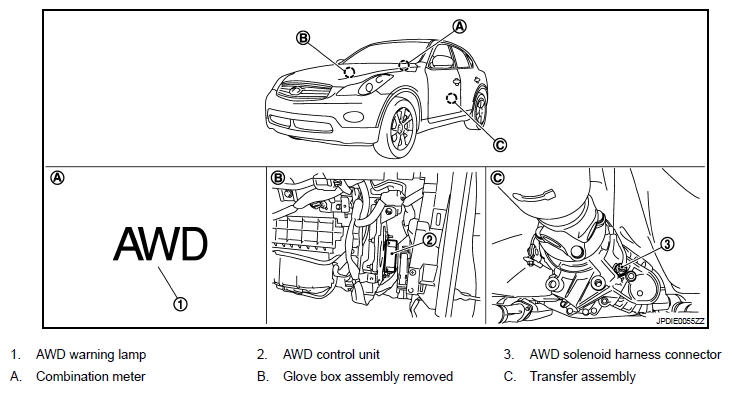

Fig 1: Identifying AWD System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
