Shift Change Control
›
System Diagram
System Diagram

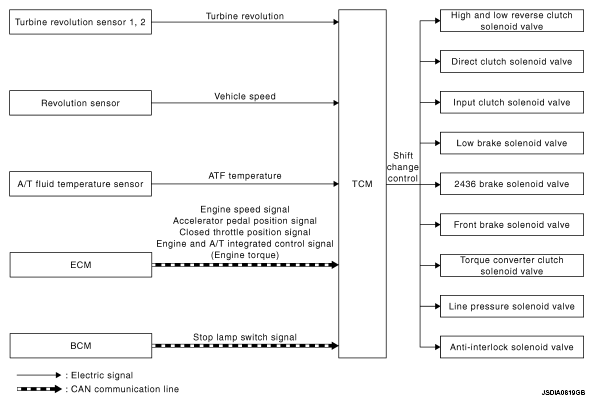

Fig 1: Shift Change Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
