FixVault
Home
›
Infiniti
›
2010
›
FX35 RWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System
›
On-Vehicle Repair
›
Front Door Glass
›
Exploded View
Exploded View

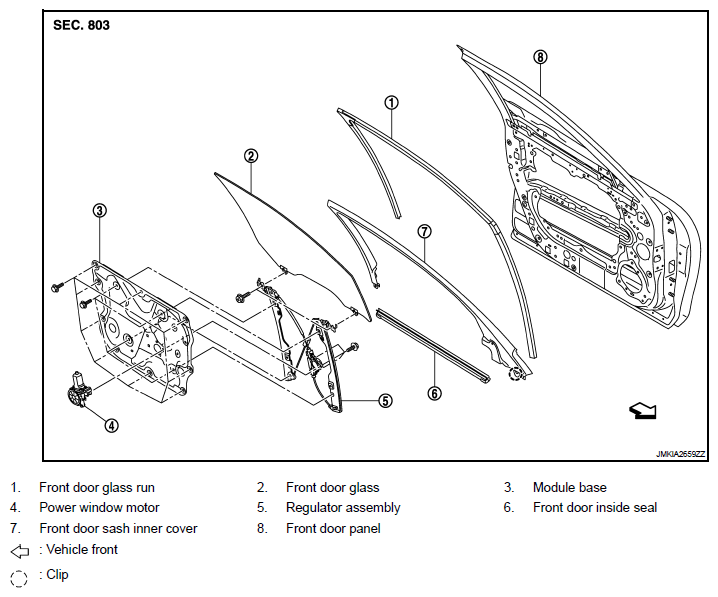

Fig 1: Exploded View Of Front Door
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
