System Diagram
System Diagram

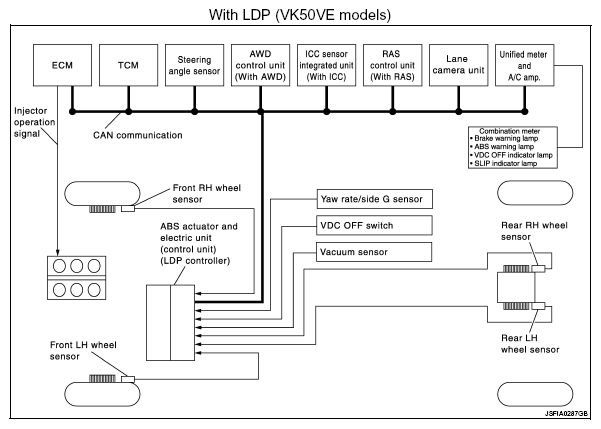

Fig 1: ABS System Diagram (With LDP - VK50VE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

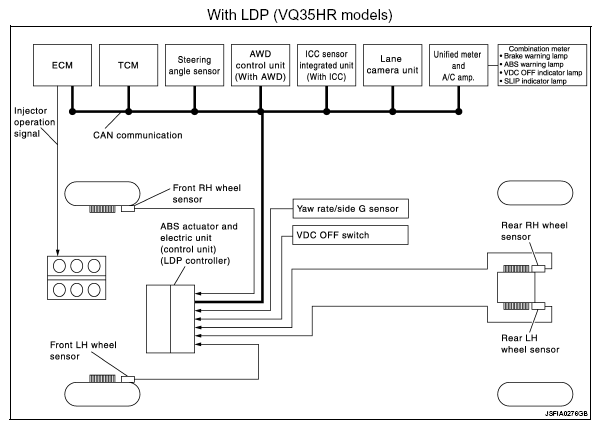

Fig 2: ABS System Diagram (With LDP - VQ35HR Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

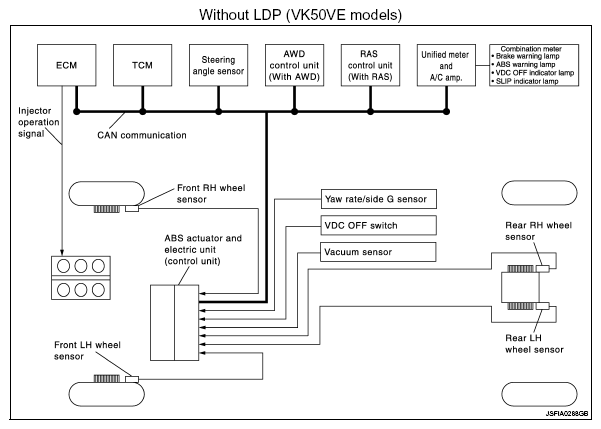

Fig 3: ABS System Diagram (Without LDP - VK50VE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

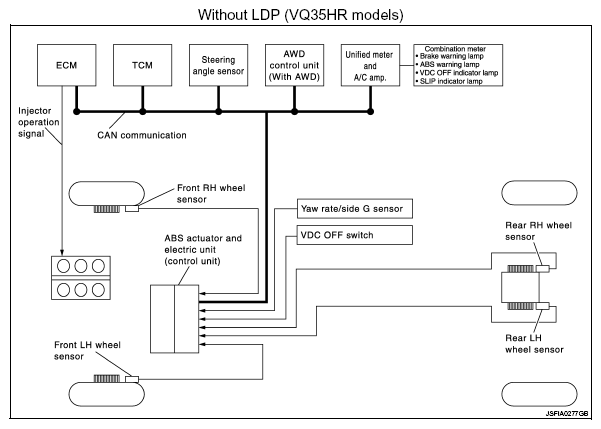

Fig 4: ABS System Diagram (Without LDP - VQ35HR Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
