Exploded View

WARNING: This page is about a different variant/trim than selected.

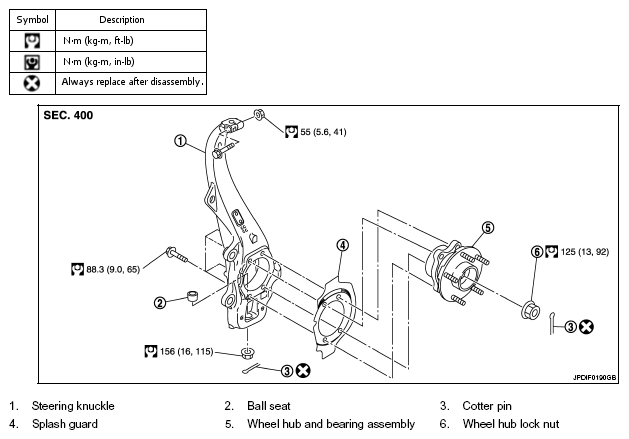

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the above.
