FRONT WHEEL SENSOR: Exploded View

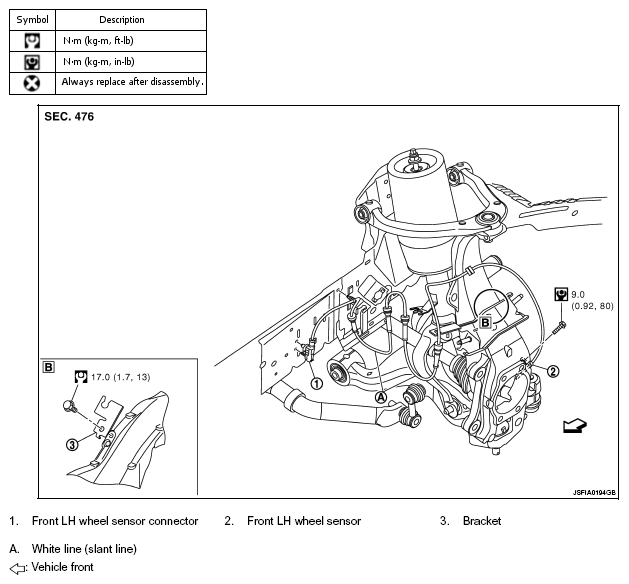

Fig 1: Front Wheel Sensor Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION or COMPONENTS for symbol marks above.
