AWD models

WARNING: This page is about a different car, the 2010 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

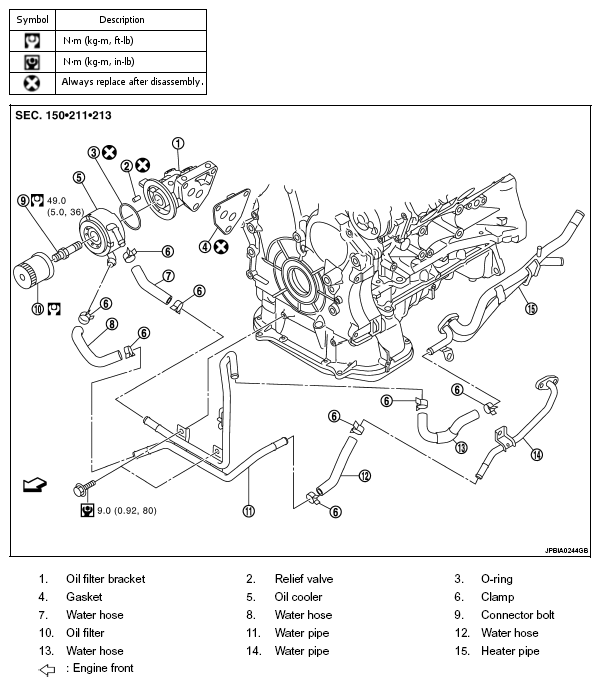

Fig 1: Exploded View Of Oil Cooler With Torque Specifications (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the graphic.
