Component Parts Location

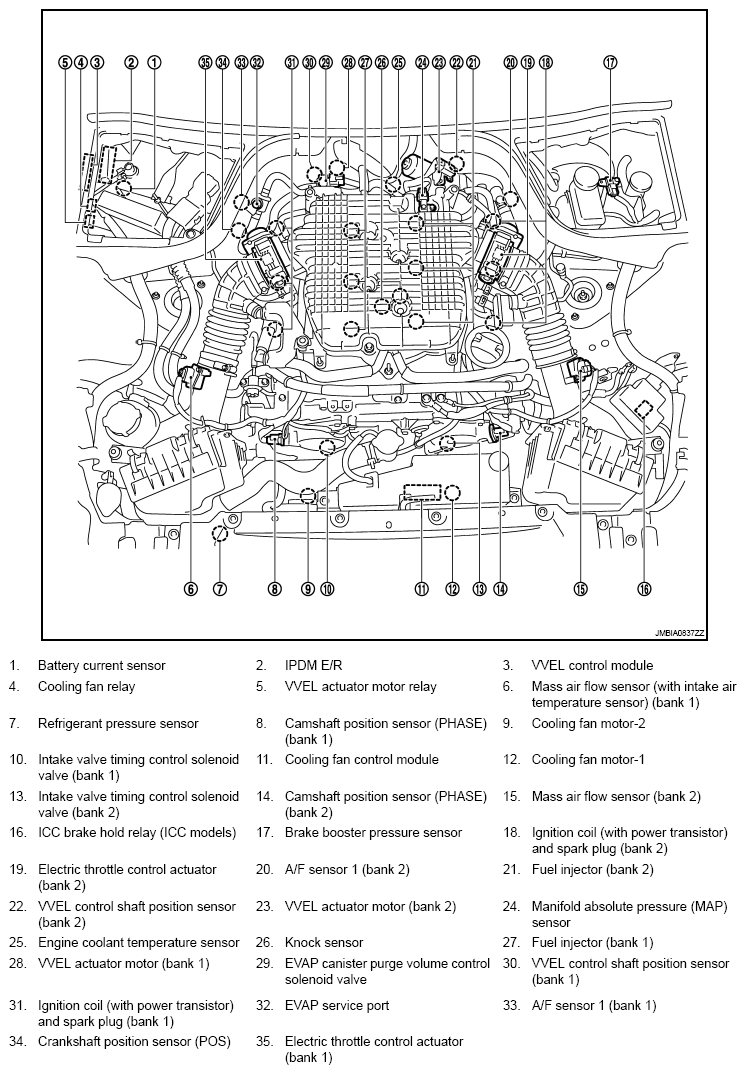

Fig 1: Identifying Evaporative Emission System Component Parts Location (1 Of 21)

G06614275

Courtesy of NISSAN NORTH AMERICA, INC.

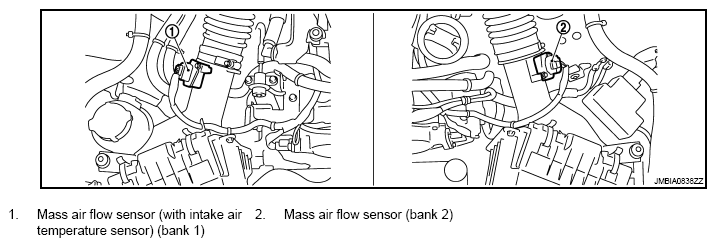

Fig 2: Identifying Evaporative Emission System Component Parts Location (2 Of 21)

G06614276

Courtesy of NISSAN NORTH AMERICA, INC.

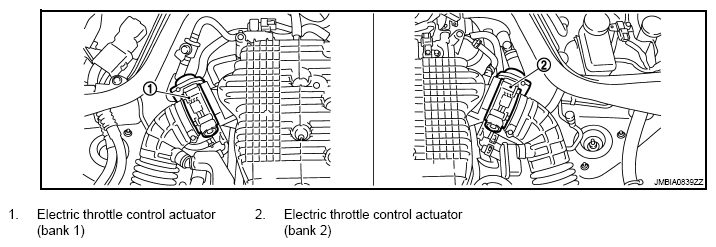

Fig 3: Identifying Evaporative Emission System Component Parts Location (3 Of 21)

G06614277

Courtesy of NISSAN NORTH AMERICA, INC.

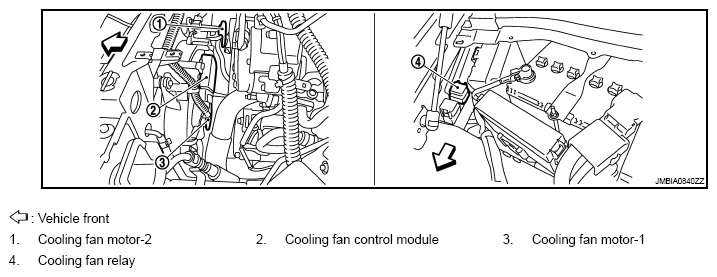

Fig 4: Identifying Evaporative Emission System Component Parts Location (4 Of 21)

G06614278

Courtesy of NISSAN NORTH AMERICA, INC.

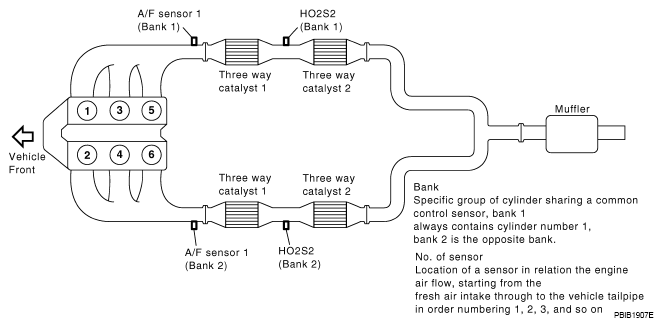

Fig 5: Identifying Evaporative Emission System Component Parts Location (5 Of 21)

G06614279

Courtesy of NISSAN NORTH AMERICA, INC.

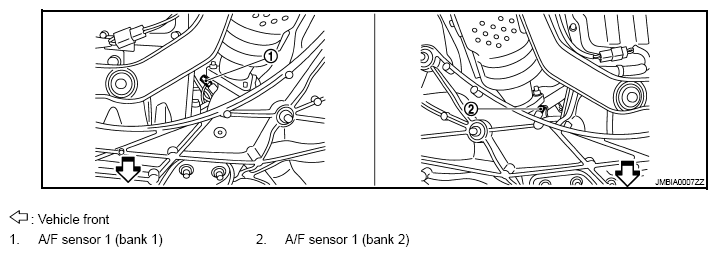

Fig 6: Identifying Evaporative Emission System Component Parts Location (6 Of 21)

G06614280

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Evaporative Emission System Component Parts Location (7 Of 21)

G06614281

Courtesy of NISSAN NORTH AMERICA, INC.

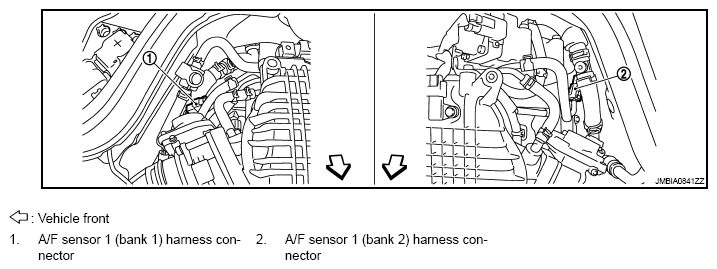

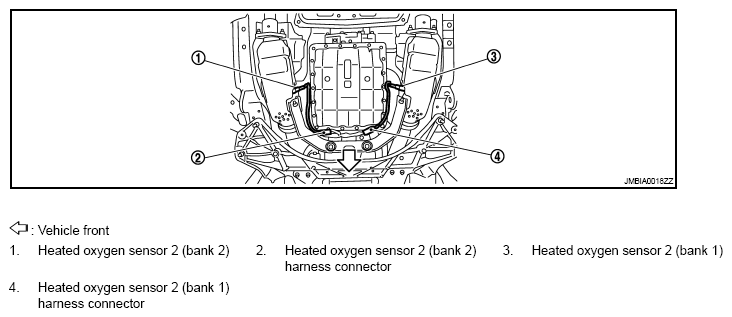

Fig 8: Identifying Evaporative Emission System Component Parts Location (8 Of 21)

G06614282

Courtesy of NISSAN NORTH AMERICA, INC.

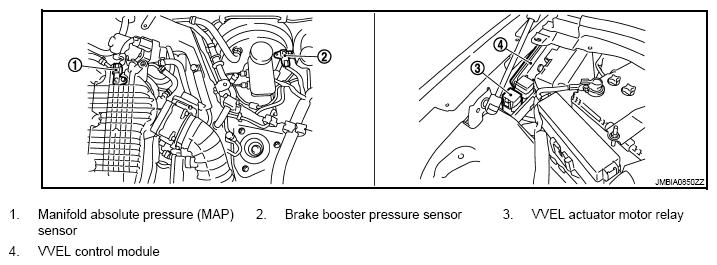

Fig 9: Identifying Evaporative Emission System Component Parts Location (9 Of 21)

G06614283

Courtesy of NISSAN NORTH AMERICA, INC.

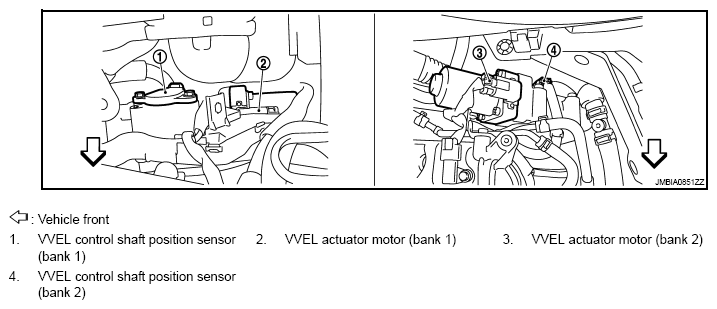

Fig 10: Identifying Evaporative Emission System Component Parts Location (10 Of 21)

G06614284

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Evaporative Emission System Component Parts Location (11 Of 21)

G06614285

Courtesy of NISSAN NORTH AMERICA, INC.

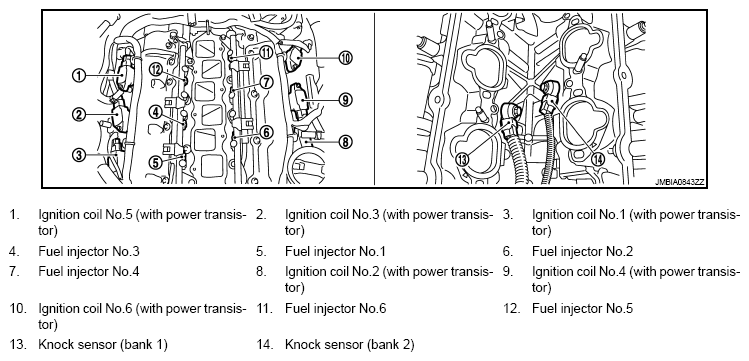

Fig 12: Identifying Evaporative Emission System Component Parts Location (12 Of 21)

G06614286

Courtesy of NISSAN NORTH AMERICA, INC.

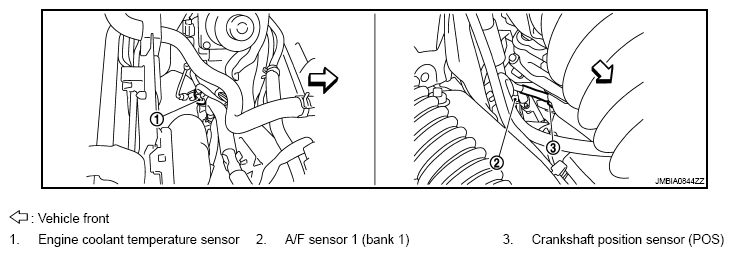

Fig 13: Identifying Evaporative Emission System Component Parts Location (13 Of 21)

G06614287

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Evaporative Emission System Component Parts Location (14 Of 21)

G06614288

Courtesy of NISSAN NORTH AMERICA, INC.

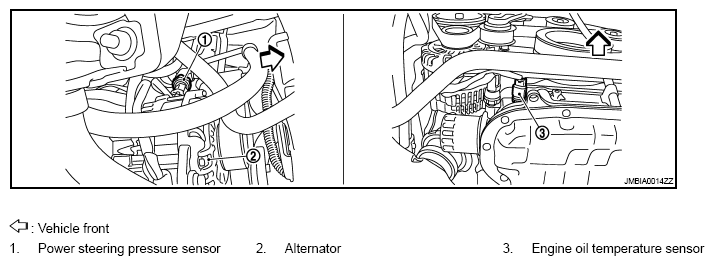

Fig 15: Identifying Evaporative Emission System Component Parts Location (15 Of 21)

G06614289

Courtesy of NISSAN NORTH AMERICA, INC.

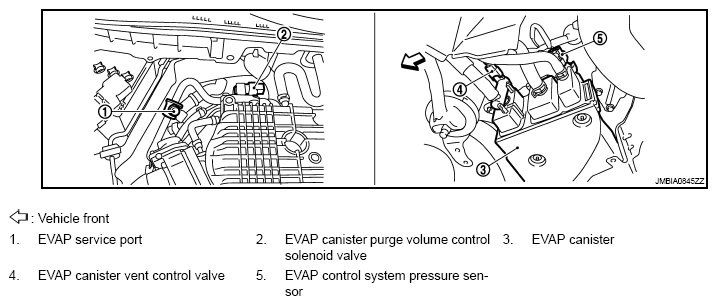

Fig 16: Identifying Evaporative Emission System Component Parts Location (16 Of 21)

G06614290

Courtesy of NISSAN NORTH AMERICA, INC.

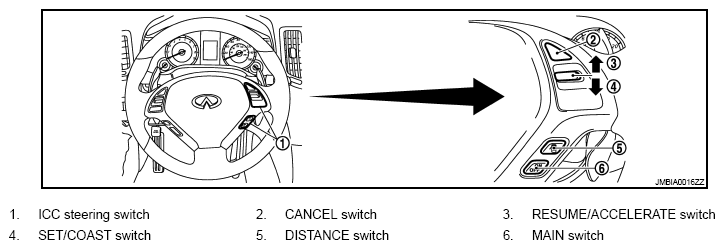

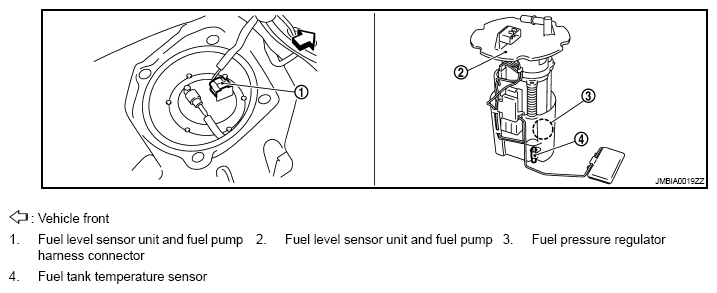

Fig 17: Identifying Evaporative Emission System Component Parts Location (17 Of 21)

G06614291

Courtesy of NISSAN NORTH AMERICA, INC.

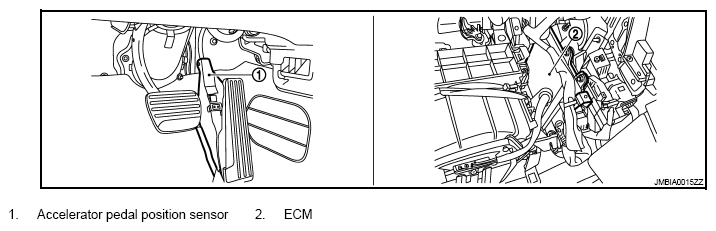

Fig 18: Identifying Evaporative Emission System Component Parts Location (18 Of 21)

G06614292

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Evaporative Emission System Component Parts Location (19 Of 21)

G06614293

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Evaporative Emission System Component Parts Location (20 Of 21)

G06614294

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Evaporative Emission System Component Parts Location (21 Of 21)

G06614295

Courtesy of NISSAN NORTH AMERICA, INC.
